Removing Balance Shaft (V6 Turbo)

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  1. → Protect components from dirt and contamination.
  2. → Clean or replace dirty components.

1. Remove balance shaft -3-  .

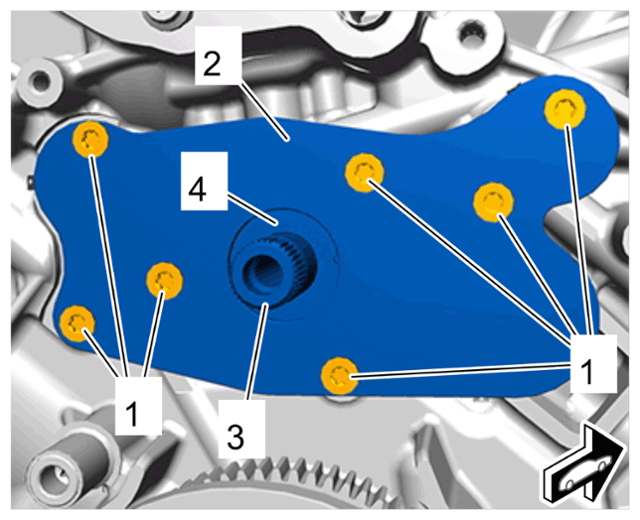

   1. 1.1  Loosen and unscrew screws -1-  and remove end plate -2-  for balance shaft -3-  .
   2. 1.2  Remove old seal and remove thrust washer -4-  from balance shaft -3-  .
   3. 1.3  Remove balance shaft -3-  for transmission side from the engine block.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Balance shaft end plate
