Exhaust System - V6 Biturbo
WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

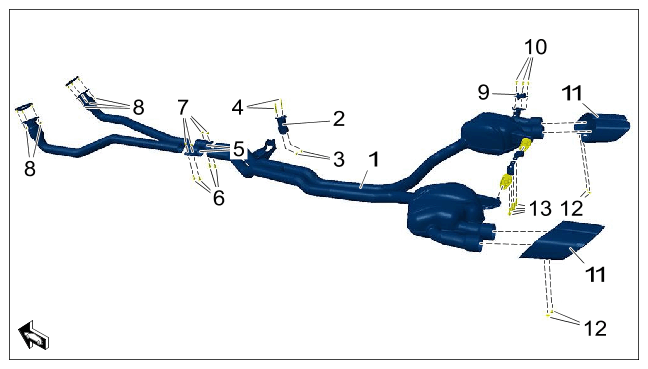

Overview of exhaust system
| 1 | Exhaust system |
| 2 | Exhaust system holder |
| 3 | > Tightening - torque 20 Nm (15 ftlb.) |
| 4 | Studs on exhaust system holder |
| 5 | Clamps/Always replace |
| 6 | Screws on clamps |
| 7 | Nuts on clamps > Tightening - torque 30 Nm (22 ftlb.) |
| 8 | Nut securing catalytic converter/petrol particulate filter to exhaust pipe (see Petrol particulate filter (OPF)) |
| 9 | Exhaust flap actuator |
| 10 | > Tightening - torque 5 Nm (3.5 ftlb.) |
| 11 | Tailpipe covers |
| 12 | > Tightening - torque 8 Nm (6 ftlb.) |
| 13 | > Tightening - torque 20 Nm (15 ftlb.) |
