Installing Rear Brake Disc
WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Check that all parts are in perfect condition (visual inspection) and replace them if necessary.
- Clean the levelling and centering surfaces on the rear brake disc and rear wheel hub.
- Install rear brake disc -1-
.

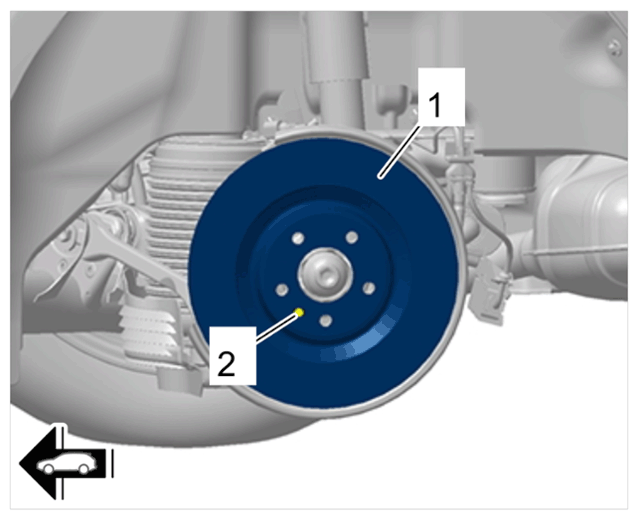

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear brake disc
- 3.1 Fit rear brake disc -1-
and tighten screw -2-
.
>
