Removing ATF Pan

WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ATF pan

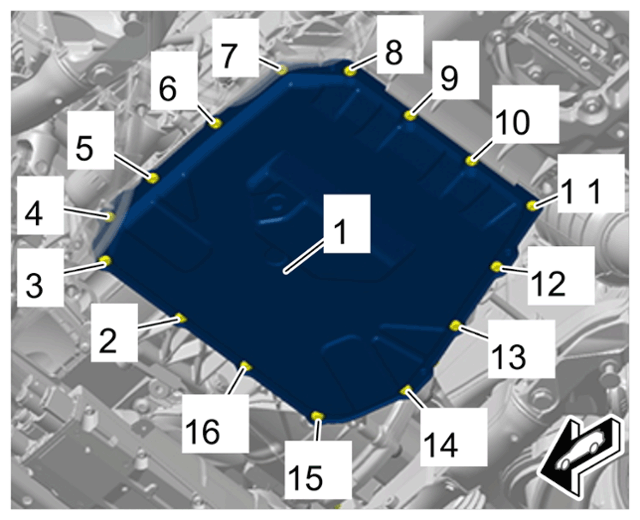

    Fig 1: ATF Pan Screws Loosening Sequence
    G15153282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ATF pan

    1. 1.1  Loosen and unscrew screws -2 to 16-  in diagonally opposite sequence.
    2. 1.2  Remove ATF pan -1-  .
    3. 1.3  Remove and dispose of old seal on ATF pan
