Installing ATF Pan

WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Information

The engine must not be started if there is no ATF in the transmission.
Risk of damage to the transmission.

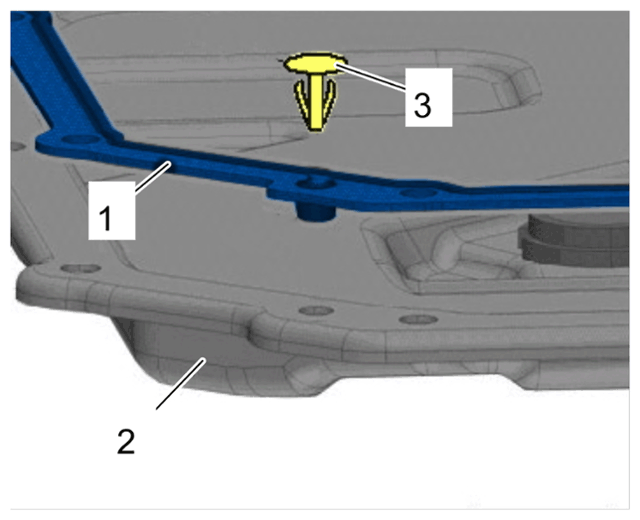

Fit new seal -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF-pan seal
1. 1.1 Clean sealing face on the ATF pan -2- .
2. 1.2 Insert nubs of the new seal into the ATF pan -2- .

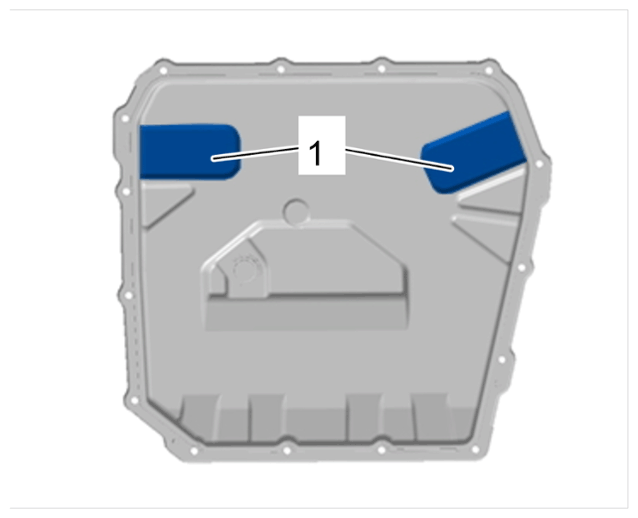

Clean the magnetic strips -1- and check that they are fitted over the entire surface in the ATF pan.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Magnetic strips in ATF pan
Install ATF pan -1- .

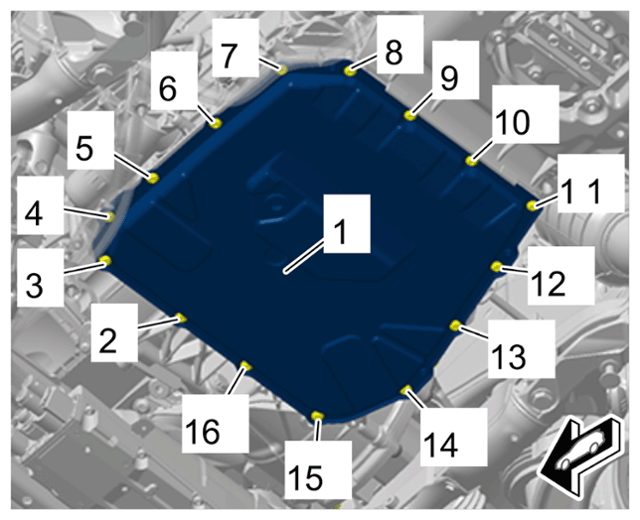

Fig 1: ATF Pan Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF pan
1. 3.1 Clean the sealing surface on the transmission.
2. 3.2 Fit the ATF pan -1- . fit screws -2 to 16- and tighten crosswise.
  > Tightening - torque 10 Nm (7.5 ftlb.)
