Removing Engine Cover (Design Cover)

WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

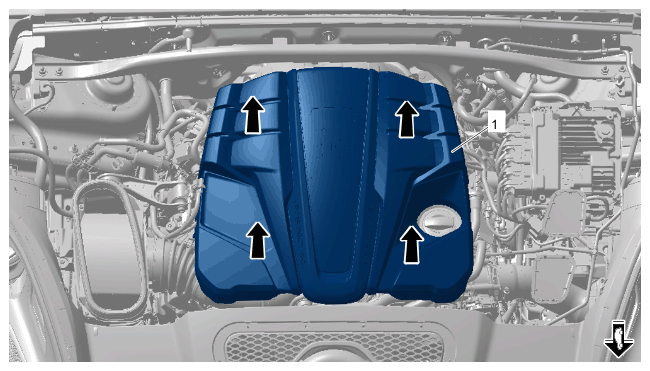

Carefully pull the engine cover (design cover) -1- up off the four fastening points one at a time -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine cover (design cover)

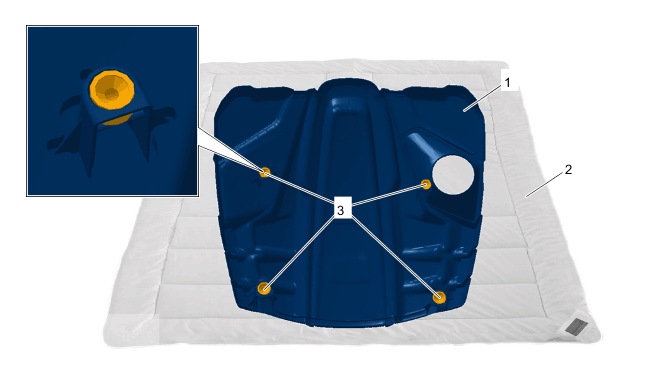

Set engine cover (design cover) -1- down with the visible side on a soft surface -2- and check it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine cover (design cover) - underside
1. 2.1 Check heat insulation, spotwelds and air baffle plates for damage.
  1. 2.1.1 Replace engine cover (design cover) if damaged.
2. 2.2 Check rubber plug-in couplings -3- for damage and replace them if necessary.
