Installing Torque Support
WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Install torque support
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

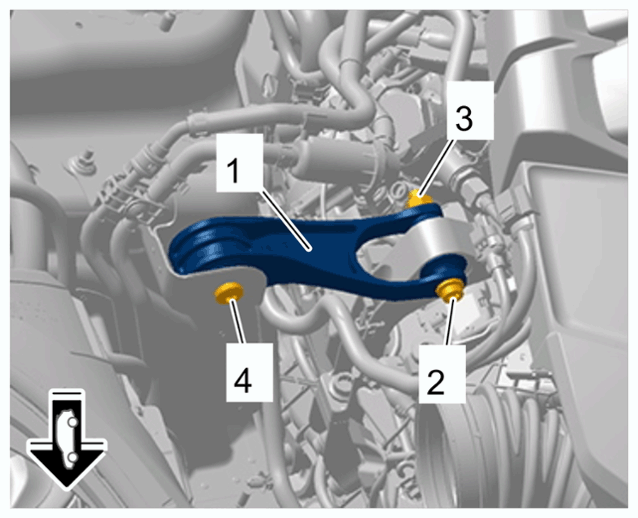

Torque support
- 1.1
Position torque support -1-
. Fit screw -2-
with nut -3-
, as well as screw -4-
.
- 1.2
Tighten screw -2-
.
- Initial tightening 15 Nm (11 ftlb.)
- Final tightening 180°
- 1.3
Tighten screw -4-
.
- Initial tightening 15 Nm (11 ftlb.)
- Final tightening 180°
