Marking Engine Number

WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Number embossing tools must not be used for marking.
Due to the material composition, the engine number must be engraved using the specified tool.

Prepare > VAS 221 003 - Marker pen-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

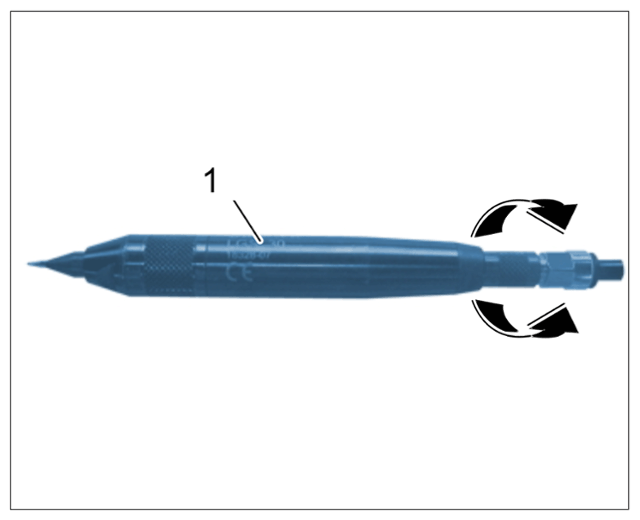

Marking pen no. 197
1. 1.1 Connect > VAS 221 003 - Marker pen-1- to compressed air supply.
2. 1.2 Turn the adjusting ring -Arrows- to adjust the compressed air supply.
3. 1.3 First test the tool on a test part.
Engrave the engine number using > VAS 221 003 - Marker pen template 0.5 (5 mm) > Example of a template.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

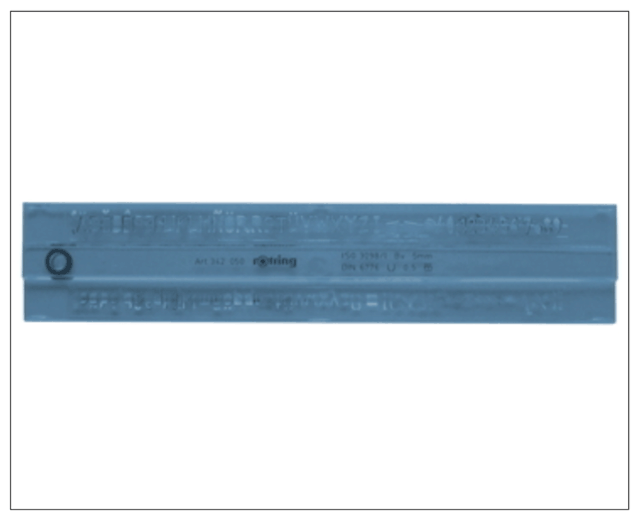

Example of a template
