Securing Engine On Assembly Support

WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Secure engine to assembly support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

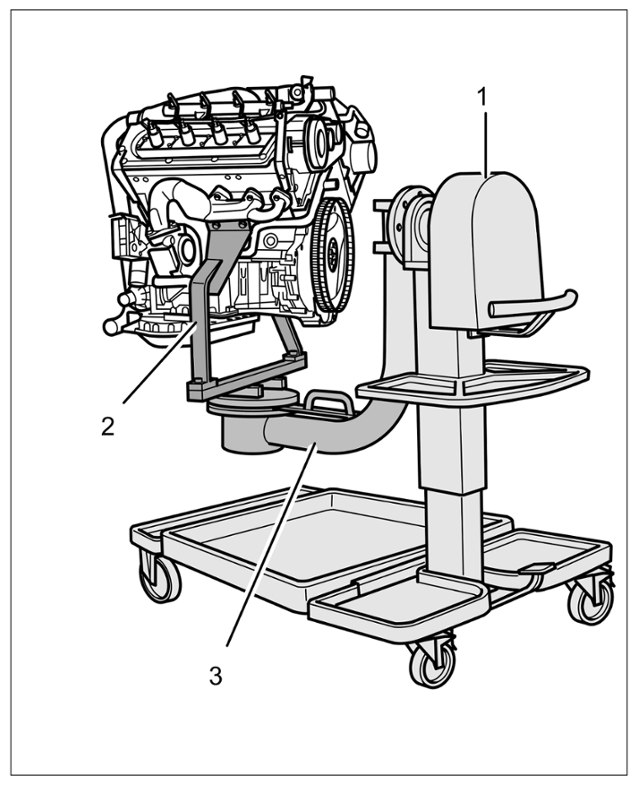

Securing engine on assembly support
1. 1.1 > VAS 6095/1 - Universal mounting-3- must be secured to > VAS 6095A - engine and gearbox bracket-1- .
2. 1.2 > VAS 6095/1-15 - Bracket-2- must be secured on the engine block.
3. 1.3 Secure engine with > VAS 6095/1-17A - bracket-2- on the > VAS 6095/1 - universal mounting-3- as shown.
Suspend engine from the workshop crane.
