Preliminary Work
WARNING: This page is about a different car, the 2024 Porsche Macan, 2023 Porsche Macan, 2022 Porsche Macan, 2021 Porsche Macan, and 2020 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy components
- Risk of squashing
- → Wear personal protective gear.
- → Get someone to help if necessary.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
- → Secure components to prevent them from falling down.
Information
The pictures shown in this document may differ from the original.
Information

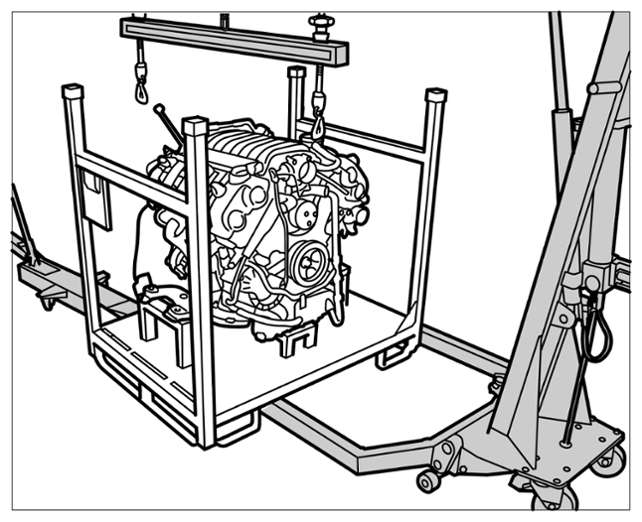

Workshop crane and transport frame
- When removing the new engine from the transport frame, it may be necessary to raise the transport frame at the side (flat jack or similar).> Workshop crane and transport frame
- When removing the new engine from the transport frame, it may be necessary to safeguard the engine against lateral movement using a second worker und against scratching by covering it with a blanket.
- Only with a new engine:
Lift the engine using a workshop crane.

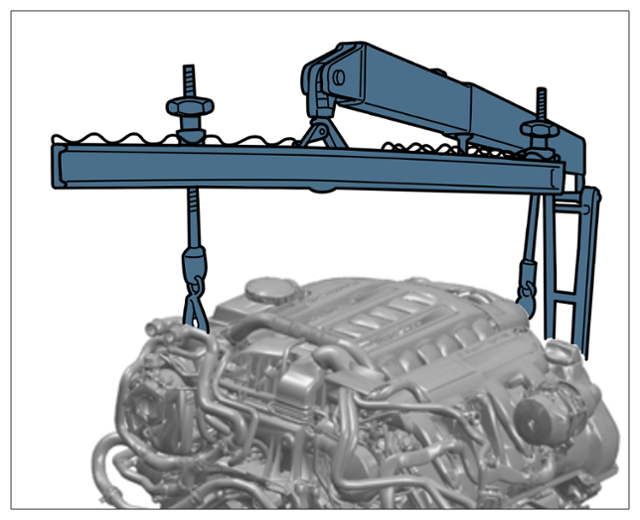

Workshop crane with lifting tackle (similar to illustration)
- 1.1 > 3033 - Lifting tackle must be engaged in the transport eyebolts on the engine. Raise the workshop crane slightly and tension the spindles slightly. The lifting tackle must be adjusted evenly.
- Removing engine
