Installing Temperature Sensor

  1. Install temperature sensor -1-  .

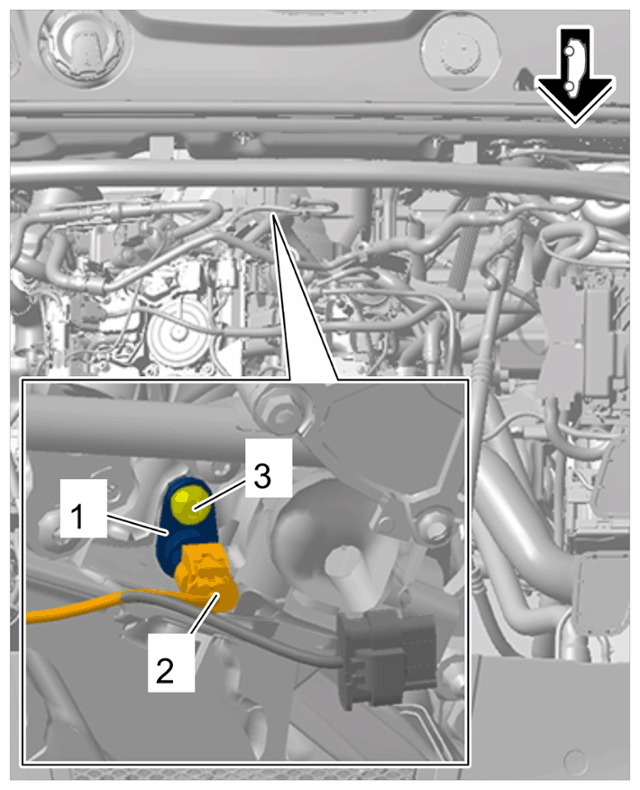

    G15145176Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Temperature sensor

    1. 1.1  Replace O-ring for temperature sensor.
    2. 1.2  Insert temperature sensor -1-  .
    3. 1.3  Tighten screw -3-  .

      Tightening torque 9 Nm (6.6 ftlb.)

    4. 1.4  Connect and lock electric plug connection -2-  .
