Replacing Rear Lid Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

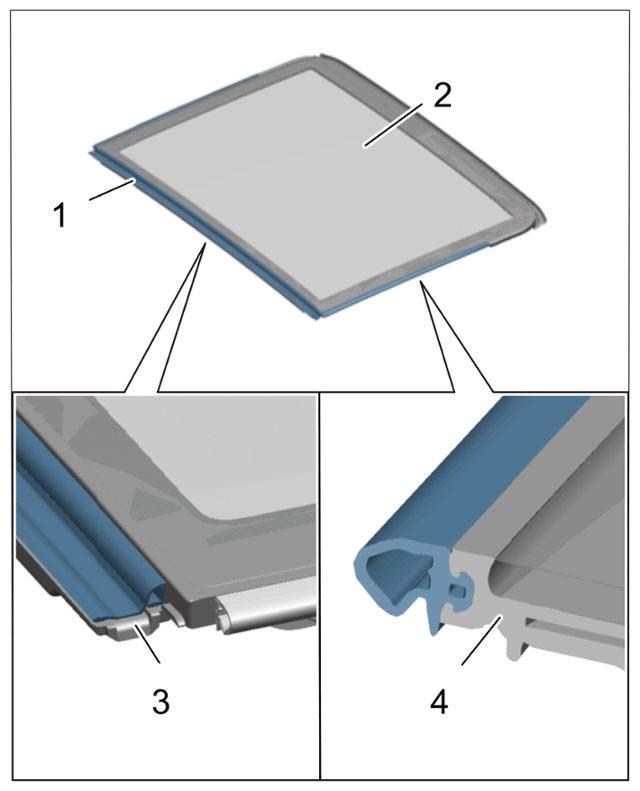

Rear lid seal

1. 1.1  Pull off rear lid seal -1-  at the side -4-  of the rear glass panel -2-  sideways.
2. 1.2  Pull off rear lid seal -1-  at the front -3-  of the rear glass panel -2-  in an upward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid seal

Information

To make installation easier, the area should be moistened with a soapy solution.

1. 2.1  Press rear lid seal -1-  at the front -3-  into the front mounting from above and centre it.
2. 2.2  Press rear lid seal -1-  at the side -4-  into the mounting for the rear glass panel -2-  .
