Removing Water Drain (Rear Sleeve)

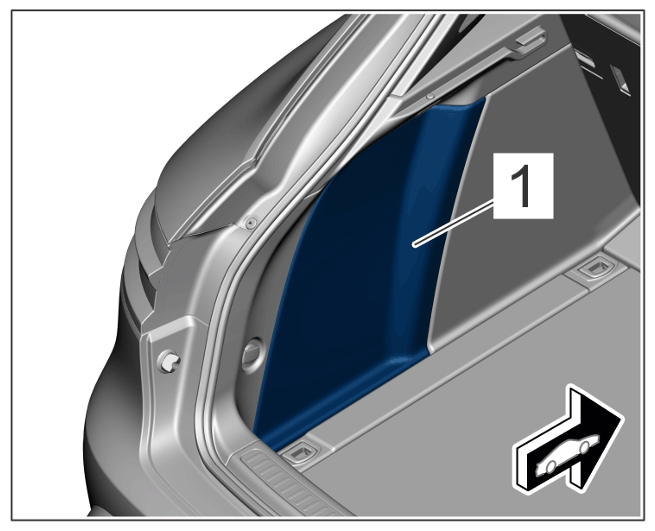

Unclip and remove inner part -1- of rear side trim panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear side trim panel

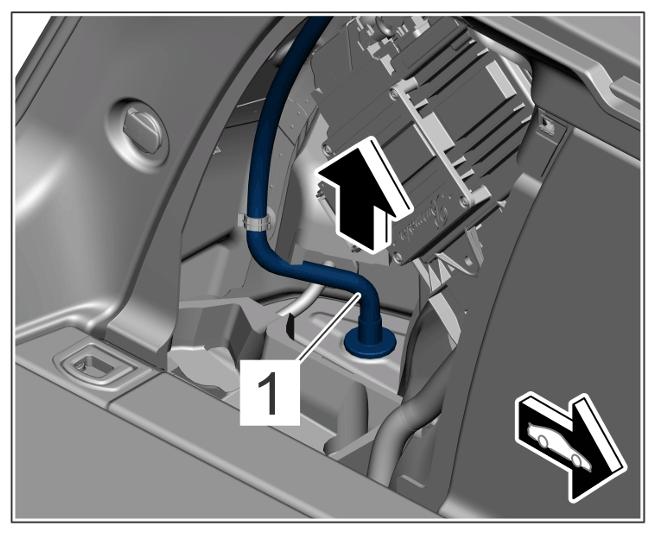

Pull water drain -1- inwards out of the body -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Water drain

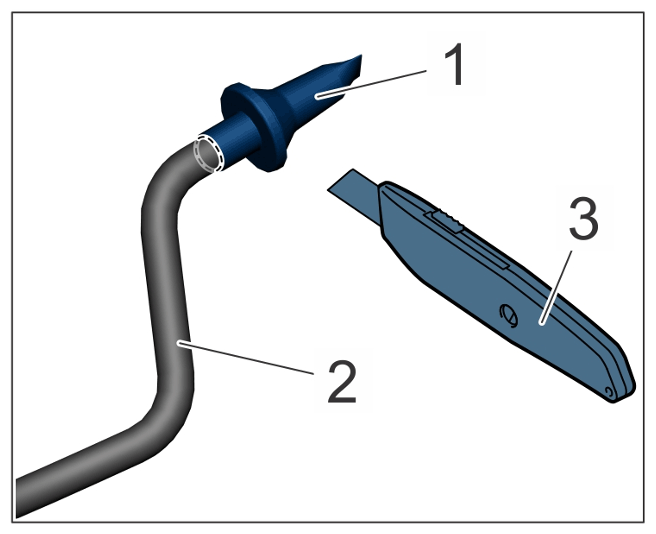

Cut off rear sleeve -1- straight at the transition -Line- to the water drain hose -2- using a cutter -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut-out view
