Installing Water Drain (Rear Sleeve)

Information

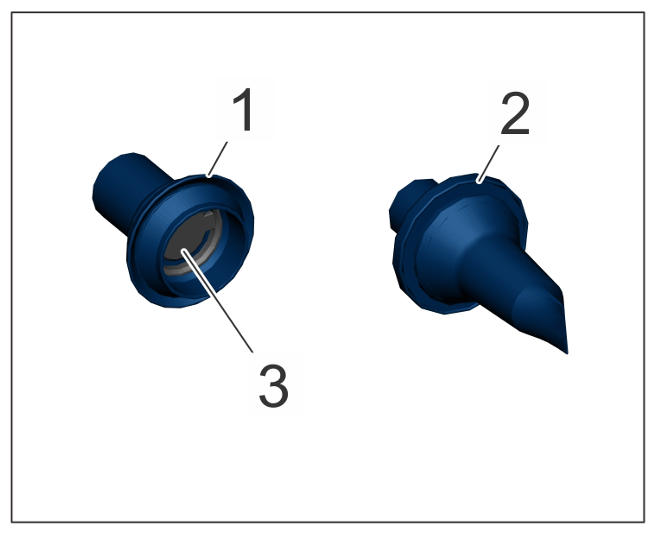

The new sleeve -1- has - a different geometry and, unlike the old sleeve -2- , has one drain flap -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Comparison of sleeves

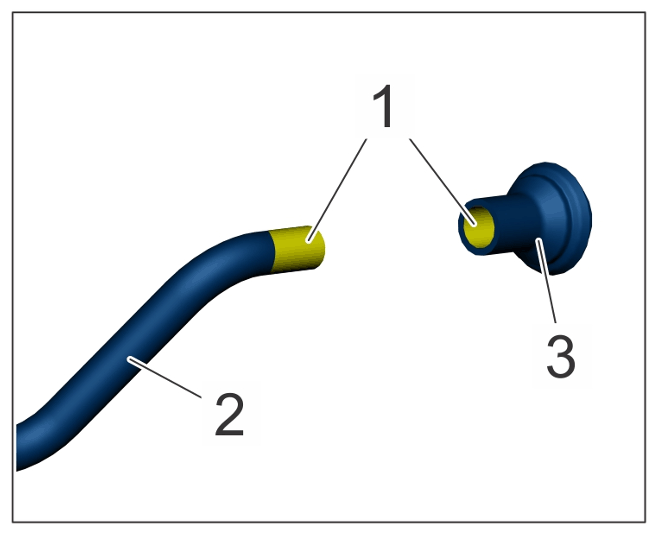

1. De-grease connection areas -1-  on the water drain hose -2-  and new sleeve -3-  using isopropanol.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connection areas

   Information

   Check that the new sleeve is positioned Correctly. An incorrect position can impair the function of the procedure.

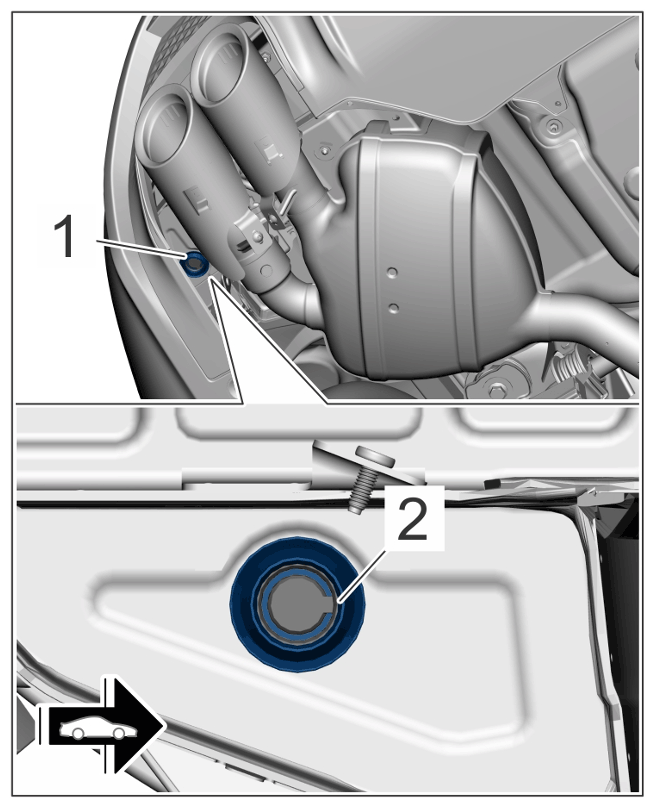

2. Insert and position new sleeve -1-  in the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Position of sleeve

   1. 2.1  Position new sleeve -1-  so that the drain flap opens towards the rear and the rubber hinge -2-  is facing in direction of travel.

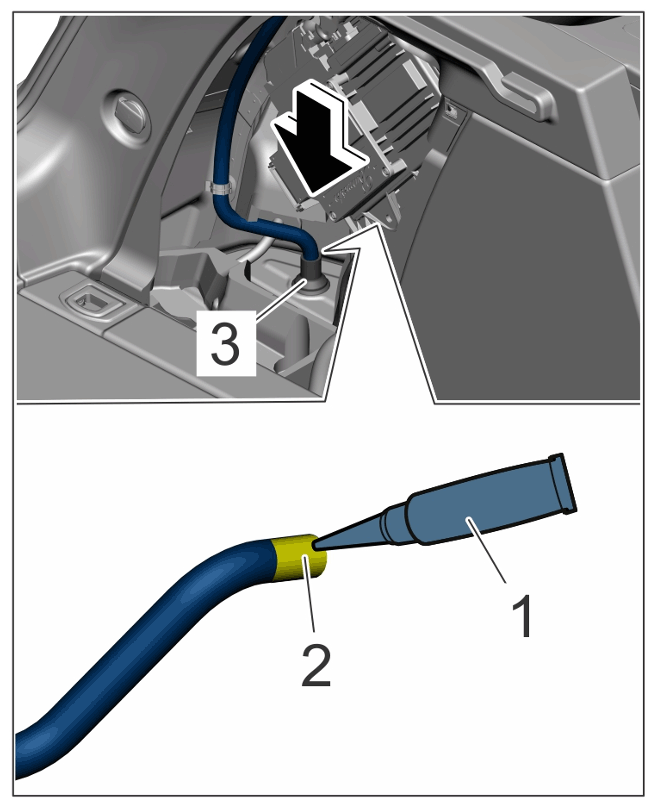

3. Apply one drop  of fast drying adhesive (cyanoacrylate) > LOCTITE 000.043.305.92-1-  to the outside of the water drain hose -2-  and insert it into the already-positioned sleeve -3- (-Arrow-)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adhesive

4. Allow fast drying adhesive to harden for 10 minutes.

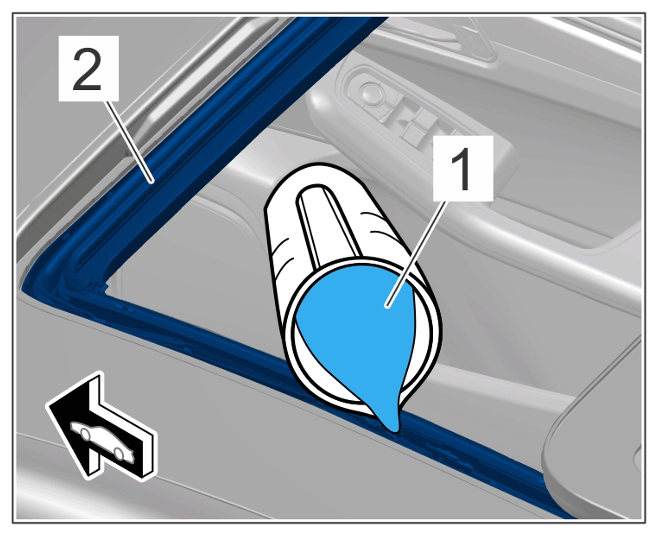

5. Carefully pour 0.5 L water -1-  into the guide rail -2-  for the sliding roof in the direction of the water drain and check that the water runs out correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking water drain

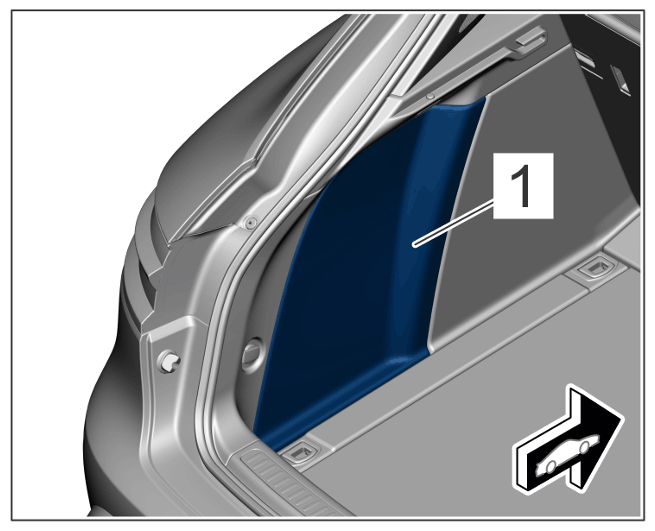

6. Position inner part -1-  of rear side trim panel and clip it in.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear side trim panel
