Removing Sliding-Roof Panel

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Remove sliding-roof panel covers -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

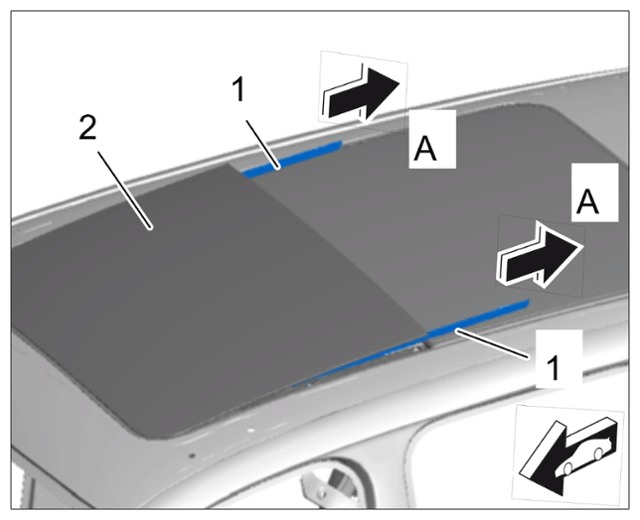

   Sliding-roof panel covers

   1. 1.1  Raise the glass roof -2-  until the sliding-roof panel covers -1-  are accessible.
   2. 1.2  Push sliding-roof panel covers -1-  to the rear from the passenger compartment and remove them -arrows A-  .
2. Remove sliding-roof panel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

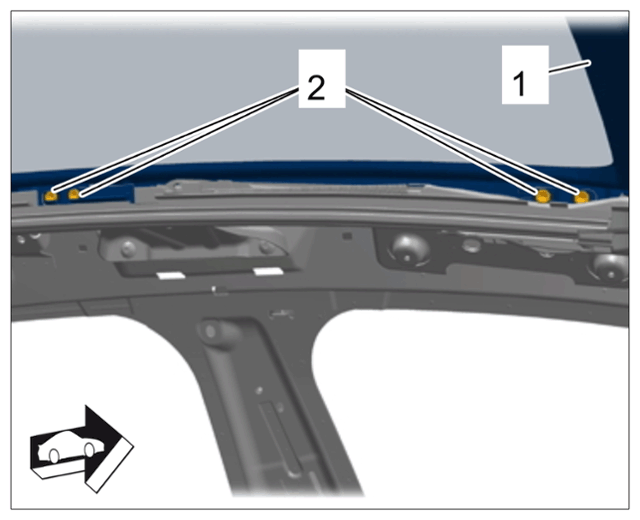

   Sliding-roof panel

   1. 2.1  Unscrew and remove screws -2-  .
   2. 2.2  Remove sliding-roof panel -1-  by pulling it up.
