Removing Air Deflector

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Open the front glass panel fully.

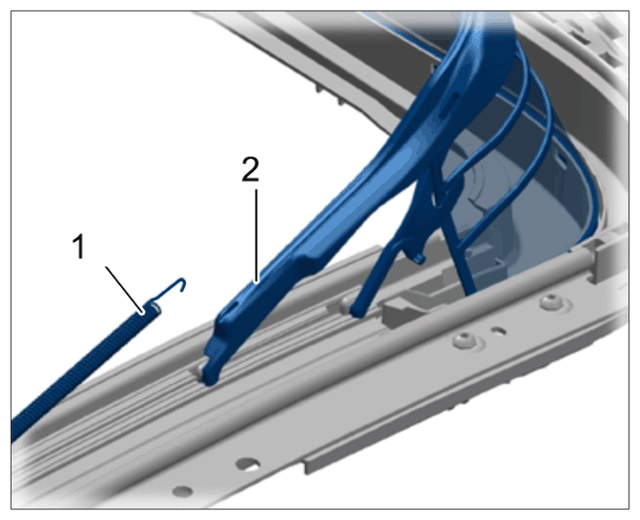

2. Disengage tension spring -1-  for air deflector -2-  at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tension spring

3. Carefully unclip net piping -1-  from the clamping strip, starting at the sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Net piping

4. Pull expansion rivet -1-  out of the guide using a pointed-nose pliers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Expansion rivet

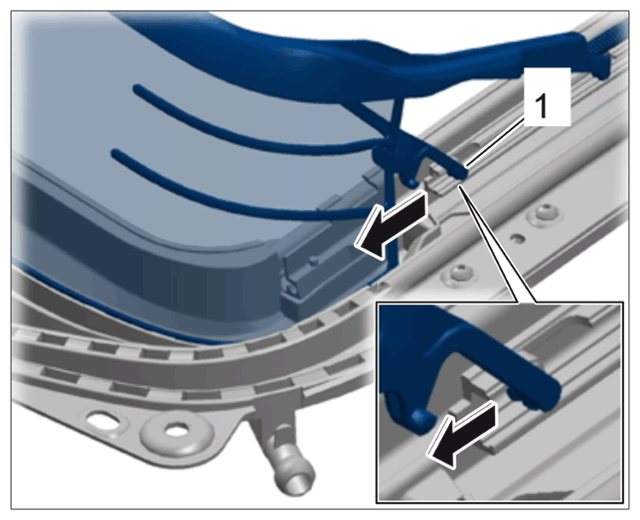

5. Pull knock-out lever for air deflector -1-  forward out of the guide rail.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air deflector

6. Remove air deflector.
