Technical Values

Location	Description	Type	Basic value

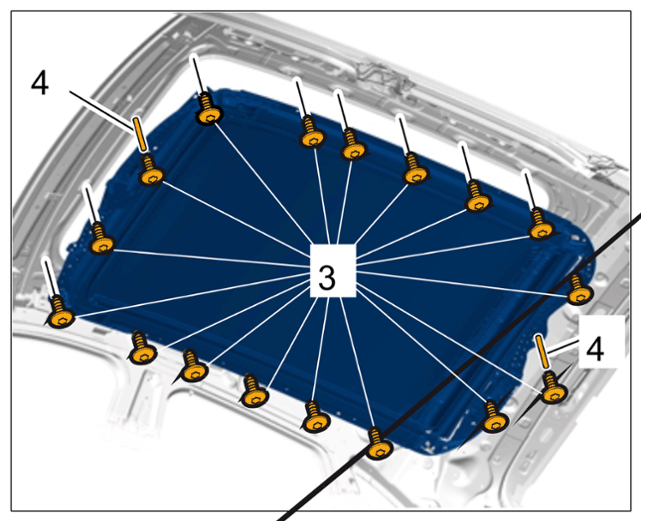

Screws securing roof assembly (panoramic roof) to roof	Item 3	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

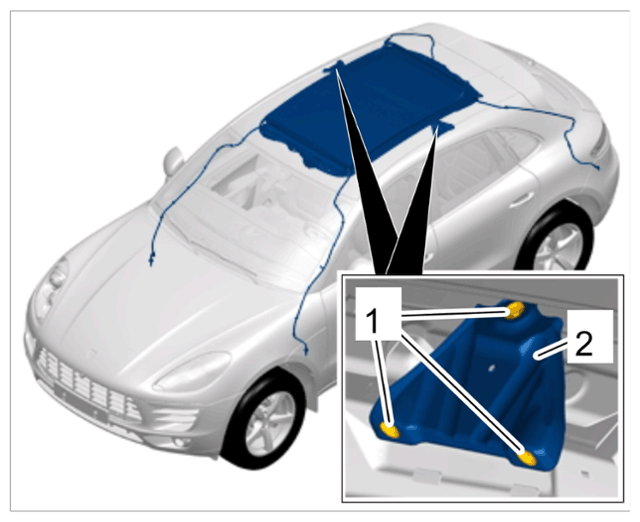

Screws securing roof console to roof	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing console

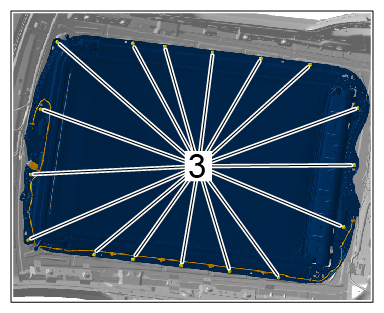

Securing roof assembly (panoramic roof) to body		Diameter	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positioning roof assembly
