Removing Roof Assembly (Panoramic Roof)

NOTIFICATION

Sliding-roof frame removed/fitted incorrectly

• Risk of damage to seats
  1. → Fold rear seat assembly over and tilt the front-seat backrests back.

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

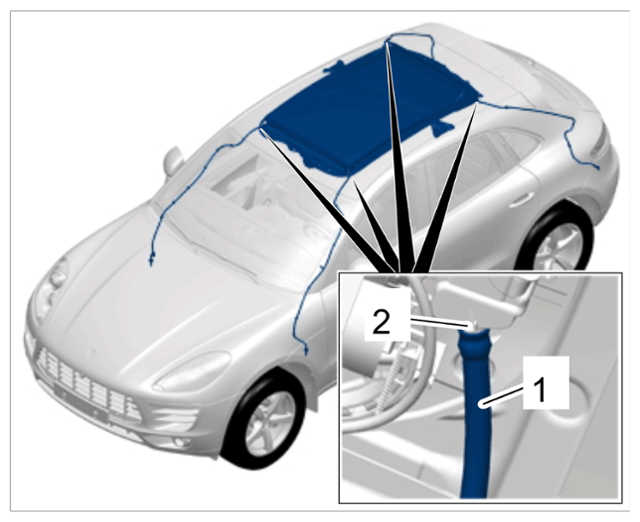

1. Pull water drain hoses -1-  at front and rear off the connection piece -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Water drains

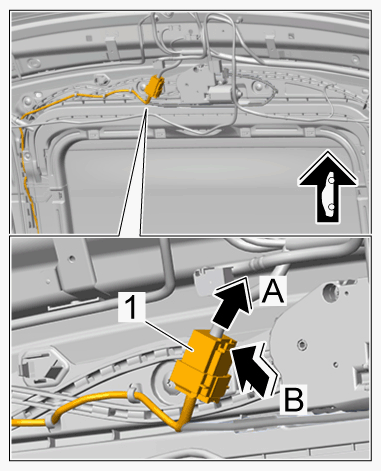

2. Release electric plug connection for wiring harness -1-  at the front -arrow B-  and disconnect it -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness

3. Loosen roof assembly (panoramic roof). (Get another person to hold the roof assembly (panoramic roof) to prevent it from falling down)
   1. 3.1  Unclip wiring harness mounting.

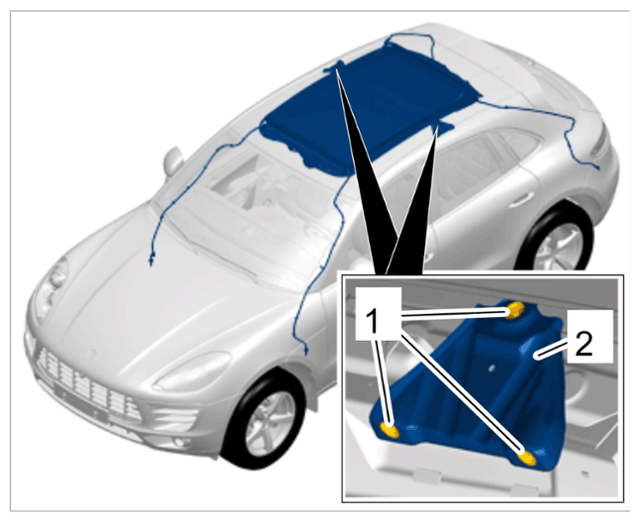

   2. 3.2  Unscrew screws -1-  on the side consoles -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Console

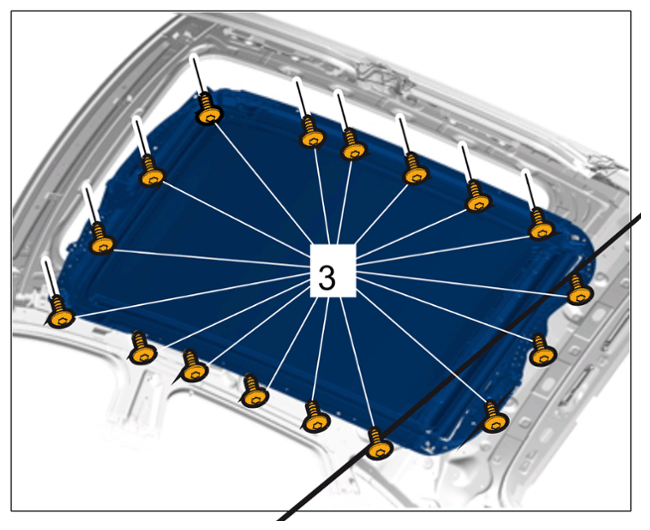

   3. 3.3  Unscrew screws -3-  for the roof assembly (panoramic roof) from back to front.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Roof assembly

   4. 3.4  Lower the roof assembly (panoramic roof) with the help of another person and pull it out of the passenger compartment through the rear lid.
