Removing Armrest With Cover (Rear)
- Unclip trim covers -1-
in an upward direction using a plastic wedge -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Trim cover
- Remove armrest with cover (rear) -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

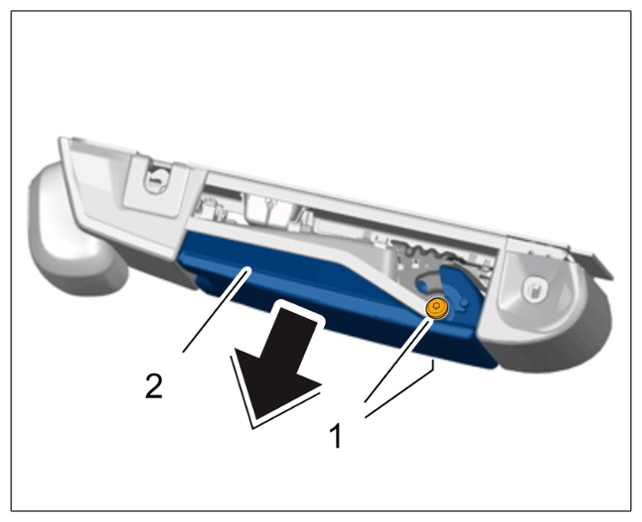

Armrest with cover (rear)
- 2.1 Unscrew screws -1-
for armrest with cover (rear) -2-
. Fit new screw
.
- 2.2 Remove armrest with cover (rear) -2-
(-Arrow-
).
