Securing Rear Seat Cover

1. Position seat cover on the padding.
2. For vehicles with heated seats:  Pull electric plug connection for seat heating -1-  through the openings in the padding -2-  , connect them and secure lines in the padding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

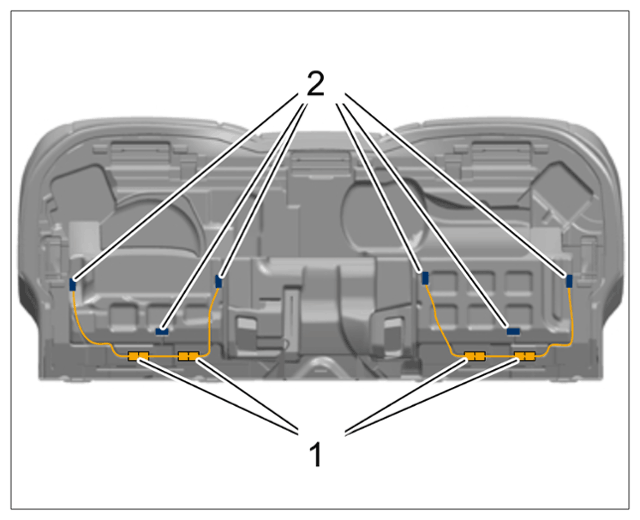

   Plugging in electric plug connection

3. Secure cushion clips.

   Secure metal struts in the cover -A-  using > Nr.130 - cushion clip pliers  in the sequence shown -1 - 47-  and -1 - 51-  to the fastening points on the padding -B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat cover (basic/Comfort)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat cover (Sport)
