Removing Wiring For Electrically Adjustable Seat

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Switch off ignition and remove remote control before disconnecting or removing electrical load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wiring for electrically adjustable seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection under control unit for memory seat adjustment

Disconnecting electric plug connections:

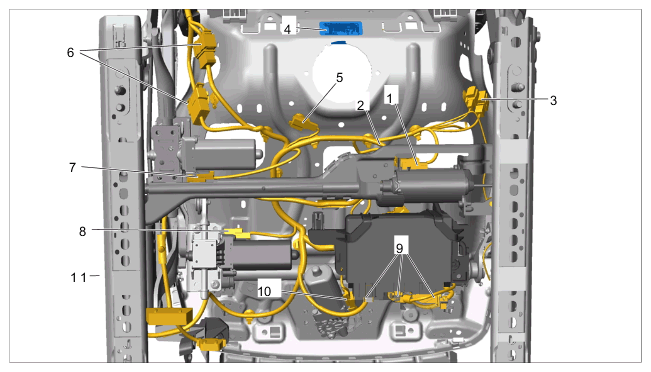

1. Release and disconnect electric plug connection -1-  for seat-adjustment motor.

   > 728719 - REMOVING AND INSTALLING SEAT-ADJUSTMENT MOTOR

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

2. Release and disconnect electric plug connection -2-  for seat heating.

   > 741019 - REMOVING AND INSTALLING PADDING FOR FRONT SEAT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

3. Unclip bracket for electric plug connection for seat heating -2-  from the seat frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

4. Release and disconnect electric plug connection -3-  for seat-belt buckle.

   > 692419 - REMOVING AND INSTALLING FRONT SEAT-BELT BUCKLE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

5. Unclip bracket for electric plug connection for seat-belt buckle -3-  from the seat frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

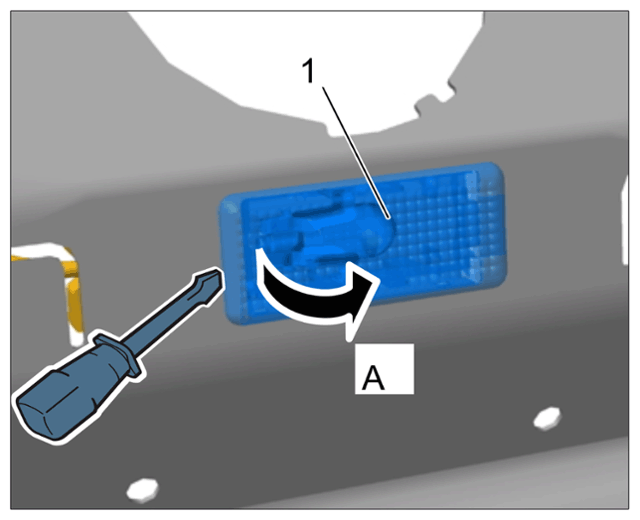

6. Unclip footwell light -1-  from the seat frame using a screwdriver -A -  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Footwell lighting

7. Release and disconnect electric plug connection -4-  for footwell lighting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

8. Release and disconnect electric plug connection -5-  for backrest heating.

   > 741719 - REMOVING AND INSTALLING PADDING FOR FRONT BACKREST

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

9. Unclip bracket for electric plug connection for backrest heating -5-  from the seat frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring for electrically adjustable seat

10. Release and disconnect electric plug connections -6-  for backrest wire harness (2 connectors).

    > 721919 - REMOVING AND INSTALLING BACKREST FRAME

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring for electrically adjustable seat

11. Unclip two brackets for electric plug connections for the backrest wire harness -6-  from the seat frame.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring for electrically adjustable seat

12. Release and disconnect electric plug connection -7-  for motor for rear vertical adjustment.

    > 729219 - REMOVING AND INSTALLING MOTOR FOR REAR VERTICAL ADJUSTMENT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring for electrically adjustable seat

13. Release and disconnect electric plug connection -8-  for motor for front vertical adjustment.

    > 728819 - REMOVING AND INSTALLING MOTOR FOR FRONT VERTICAL ADJUSTMENT (SEAT ANGLE)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring for electrically adjustable seat

14. Release and disconnect electric plug connections -9-  for control unit for memory seat adjustment (three connectors).

    > 729319 - REMOVING AND INSTALLING CONTROL UNIT FOR MEMORY SEAT ADJUSTMENT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring for electrically adjustable seat

15. Unscrew fastening screw on bracket for control unit for memory seat adjustment and seat-surface extension and remove bracket from the catches on the seat frame.

    > 740819 - REMOVING AND INSTALLING FRONT SEAT-SURFACE EXTENSION

16. Release and disconnect electric plug connection -10-  for motor for seat fore-and-aft adjustment.

    > 740819 - REMOVING AND INSTALLING FRONT SEAT-SURFACE EXTENSION

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring for electrically adjustable seat

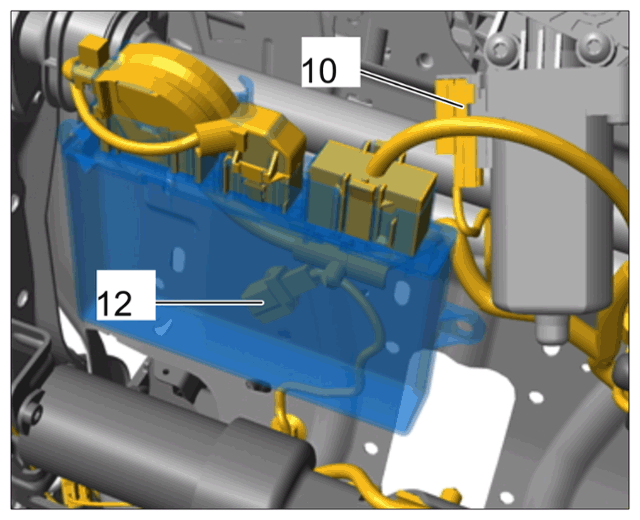

17. Release and disconnect electric plug connection -12-  for seat occupancy detection.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection under control unit for memory seat adjustment

18. Unclip bracket for electric plug connection for seat occupancy detection -12-  from the seat frame.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection under control unit for memory seat adjustment

    Loosening fastening points:

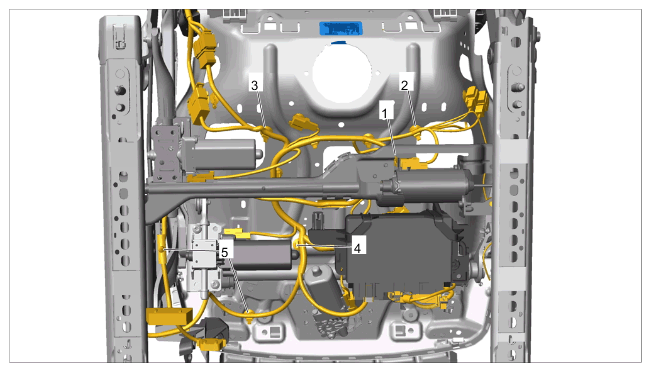

19. Unclip electric line from the bracket in areas -1-  to -5-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening points on seat frame

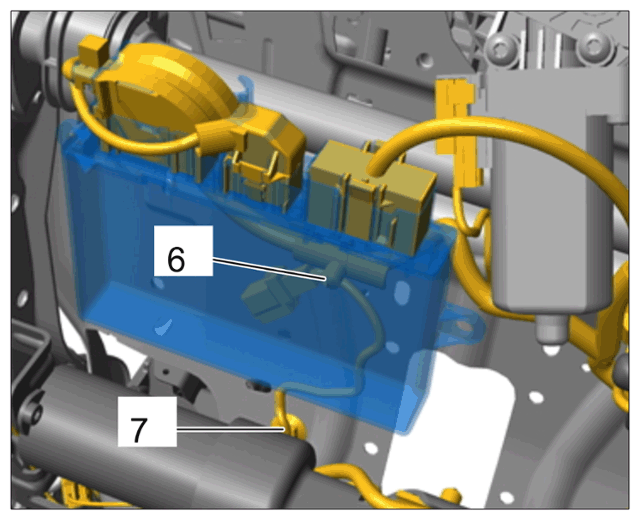

20. Unclip electric line from the brackets -6-  and -7-  on the control unit.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening points under control unit

21. Remove wire harness.
