Removing Front Roof Console

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

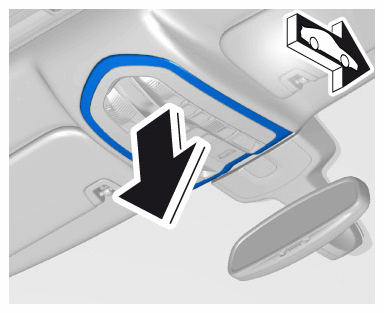

1. Unclip cover for front roof console -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

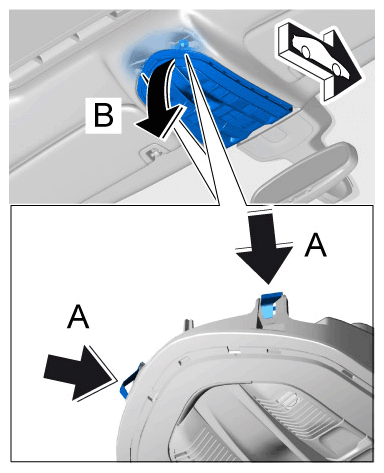

2. Unclip front roof console at the two side cut-outs -arrows A-  and swivel it downwards -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front roof console

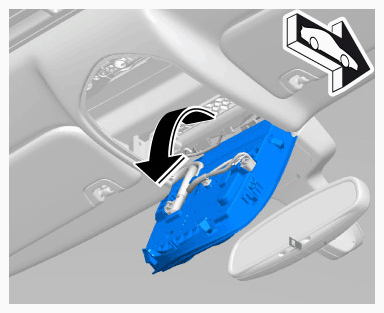

3. Lift off front roof console by pulling it to the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front roof console

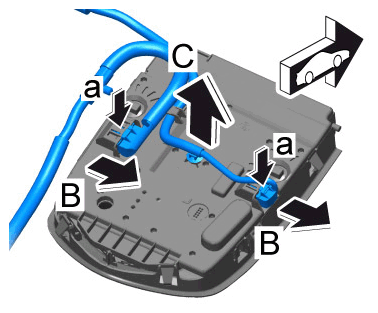

4. Disconnect electric wire harness.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

1. 4.1 Release electric plug connections -arrows a-  and pull them off -arrows B-  .
2. 4.2 Unclip fixing clip for electric wire harness -arrow C-  .
