Removing Air Vent: Notes

1. Pull air vent -2-  out of the rear centre air guide.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air vent

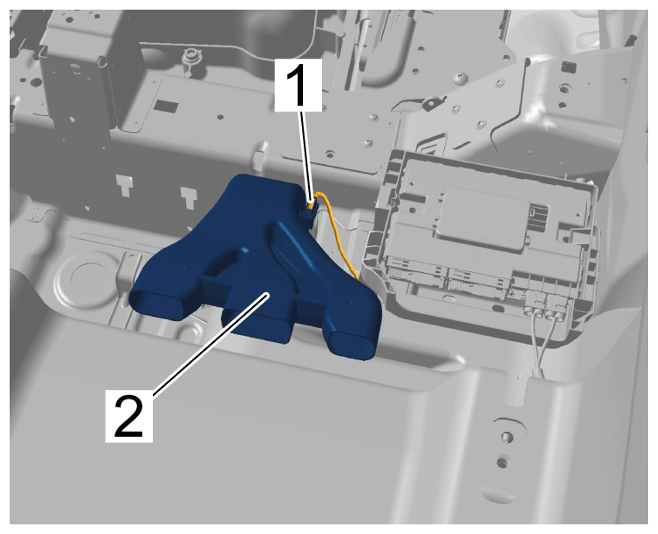

2. For vehicles with climate control (4-zone):

   Release and disconnect electric plug connection -1-  on the temperature sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Remove air vent -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air vent
