Removing Temperature Sensor

1. Release and disconnect electric plug connection -1-  on temperature sensor -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

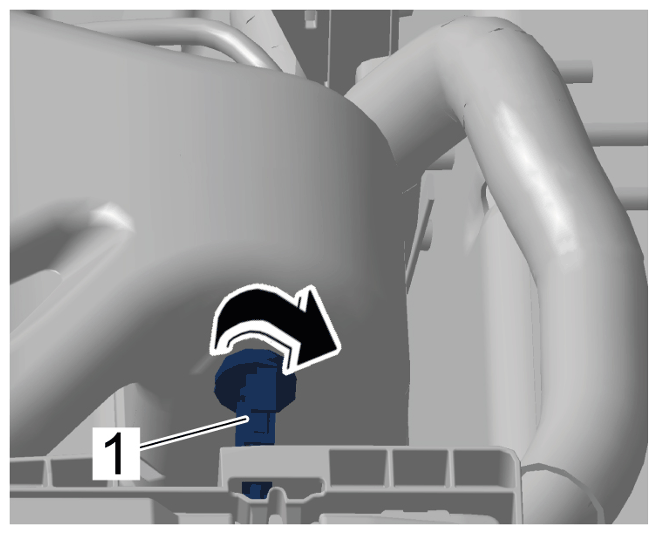

2. Turn temperature sensor -1-  90° clockwise -Arrow-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Temperature sensor
