Removing Rear Air-Conditioning System Regulator

  1. Remove rear air-conditioning system regulator -1-  .

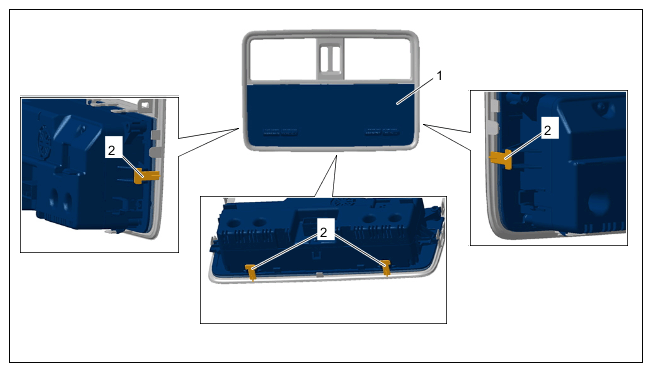

    G15241033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear air-conditioning system regulator

    1. 1.1  Unclip rear air-conditioning system regulator -1-  from the retaining lugs -2-  and remove it from the trim frame.
