Technical Values

Location	Description	Type	Basic value
Heat shield on centre tunnel, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

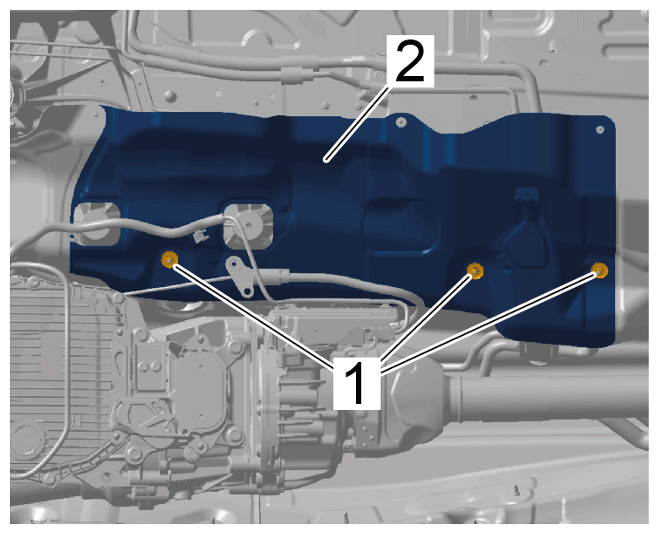

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Heat shield on cardan shaft centre bearing	Item 3	Tightening torque	2.1 Nm (1.5 ftlb.)

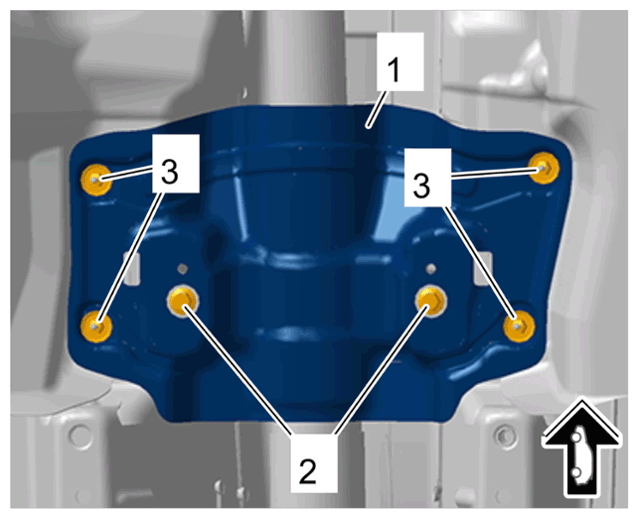

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield for cardan shaft
Heat shield on tunnel, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

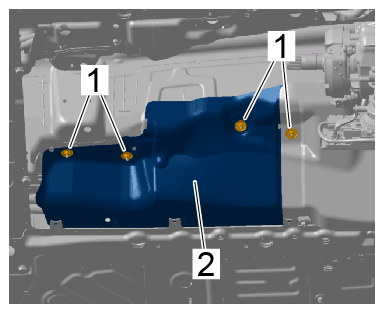

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Nut for rear underbody cover	Item 2	Tightening torque	2 Nm (1.5 ftlb.)

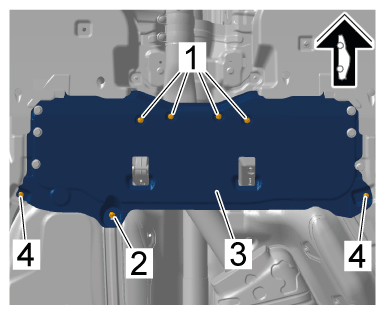

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear centre underbody cover
Screws for rear underbody cover	Item 4	Tightening torque	3 Nm (2.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear centre underbody cover
Nut on coolant line holder at the underbody connection point	Item 3	Tightening torque	9 Nm (6.6 ftlb.)
Nut securing coolant line holder to body	Item 3	Tightening torque	2.5 Nm (1.8 ftlb.)
Coolant line holder on body	Nuts/Item 2	Tightening torque	5 Nm (3.7 ftlb.)

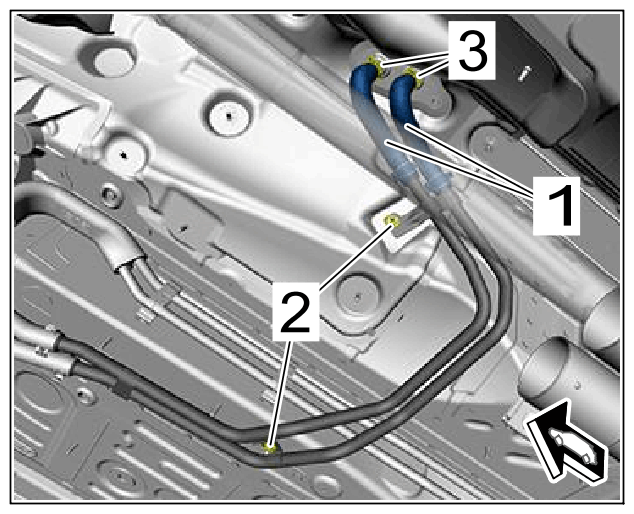

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant line holder on body

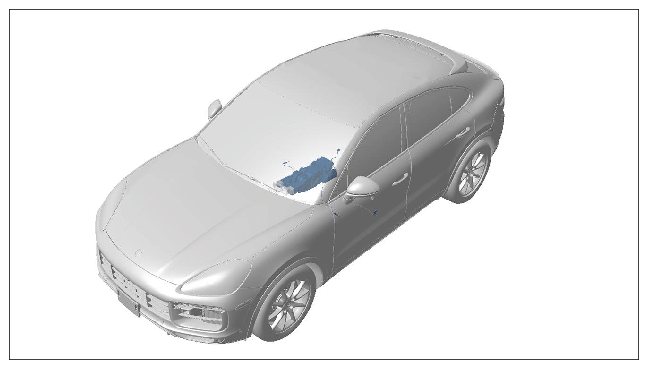

Installation position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position
