Removing Additional Air Conditioner (Booster)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

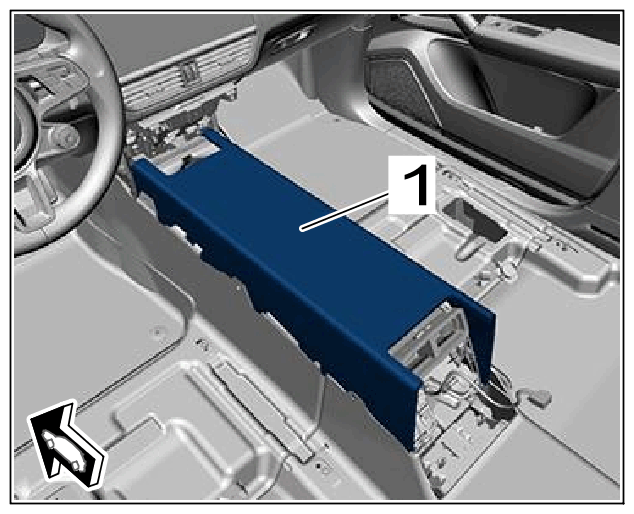

Insulating mat

1. 2.1  Release and disconnect electric plug connection -1-  .
2. 2.2  Unclip clips -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

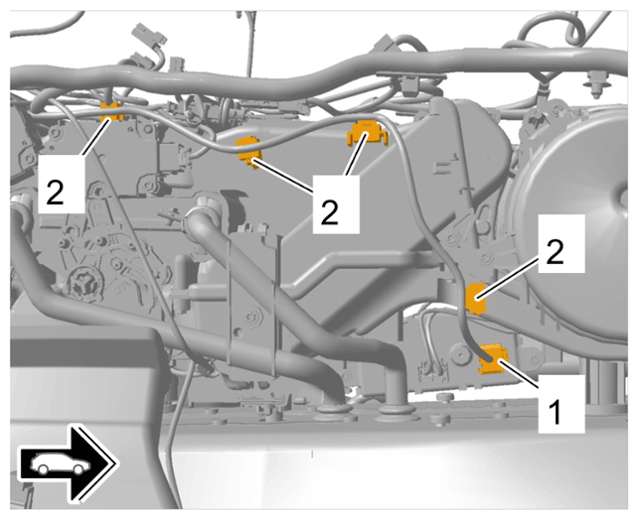

Electric plug connection for additional air conditioner at the right

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

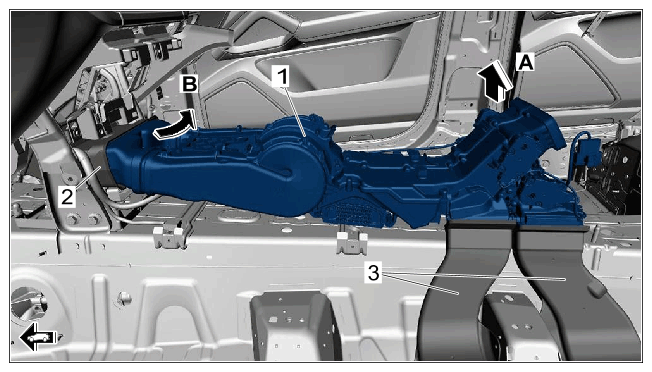

Additional air conditioner

1. 3.1  Lift additional air conditioner -1-  out of the fastening elements -arrow A-  and guide it out -arrow B-  .
