Disconnecting And Connecting Battery

Information

Switch off all loads and switch off ignition.

Keep ignition key outside of the vehicle and outside of tie transmission range of the radio receiver.

Do not disconnect the battery while the engine is running.

Disconnect and connect battery with extreme caution.

Disconnect battery

1. Remove battery cover in footwell on the passenger's side.

   > 271219 REMOVING AND INSTALLING BATTERY COVER - section on "Removing"

2. Disconnect ground cable from the battery.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

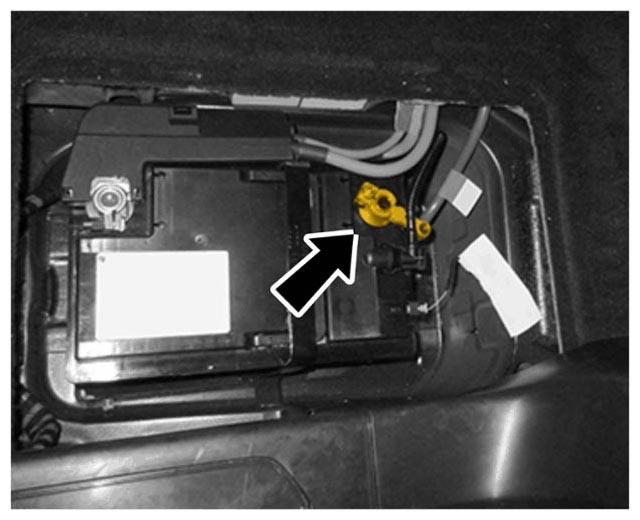

   Loosening ground strap

3. Route or insulate the ground strap so that all contact with a battery terminal is avoided.

   Connect the battery

4. Connect ground cable to the battery terminal and secure it.
5. Fit cover in footwell on the passenger's side.

   Location	Description	Type	Basic value	Tolerance
   Terminal clamp to battery		Tightening torque	6 Nm (4.5 ftlb.)
