2X Petrol, Exhaust, Engine-Electric - General 4.0L -- 9YA - Cayenne (9YA)
>>
WM, 2X00IN Technical Values
>>
Technical Values
>>
Ignition Starter Switch
Ignition Starter Switch
Location
Description
Type
Basic value
Tolerance

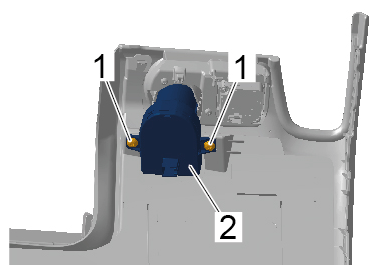

Ignition starter switch to trim panel
Item 1
Tightening torque
3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
