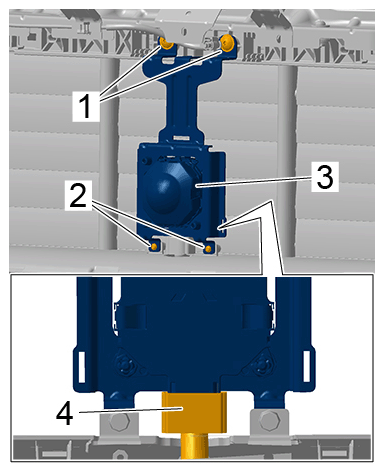

| Fastening screw for distance measuring sensor holder |
Item 1 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
|
|
|
|
| Fastening screws for distance measuring sensor holder |
Item 2 |
Tightening torque |
2.5 Nm (1.75 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
|
|
|
|
