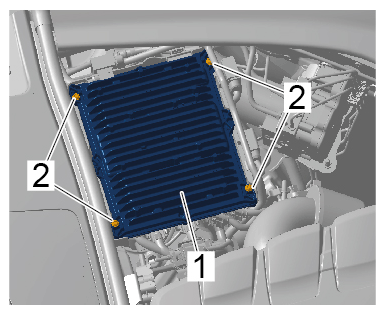

| DME (diesel) control unit to holder |
Item 2 |
Tightening torque |
5 Nm (3.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
|
|
|
|

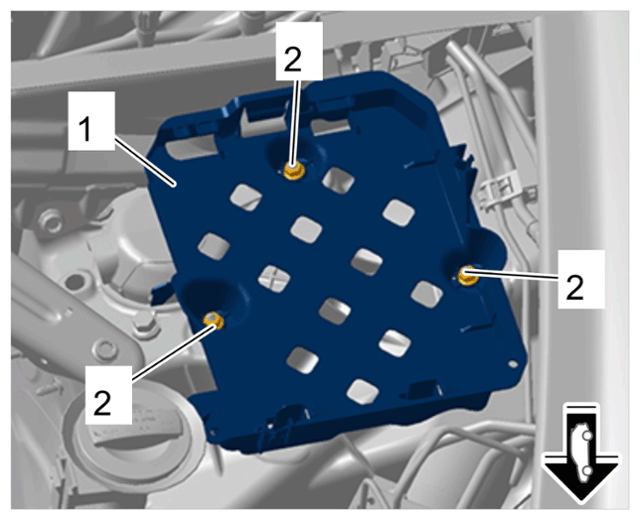

| Nuts securing DME control unit holder to body |
Item 2 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
DME control unit holder |
|
|
|
|
