Battery Isolating Element

Location	Description	Type	Basic value

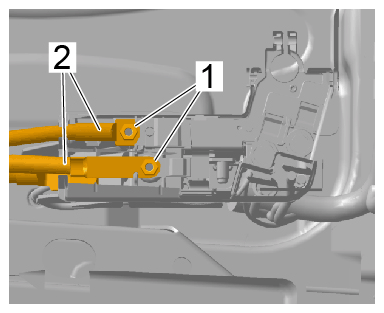

Fastening nuts securing positive cables to isolating element	Item 1	Tightening torque	17 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for positive cables

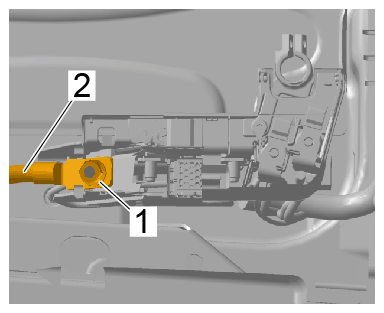

Fastening nut securing positive cable to isolating element	Item 1	Tightening torque	17 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for positive cable

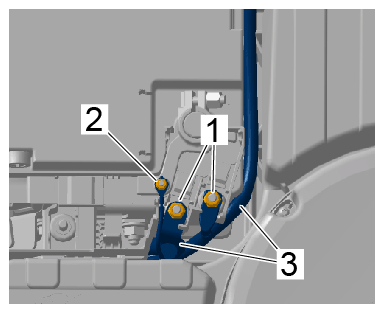

Fastening screw securing wire harness to isolating element	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for wire harness
Fastening nuts securing positive cables to isolating element	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for positive cables
