48-Volt Additional Battery

Location	Description	Type	Basic value

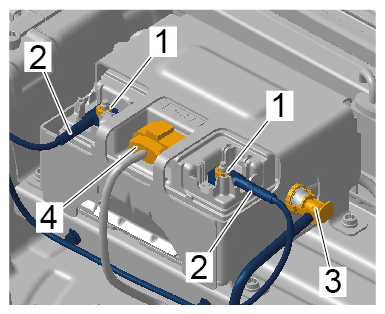

Fastening nuts for battery terminals	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts

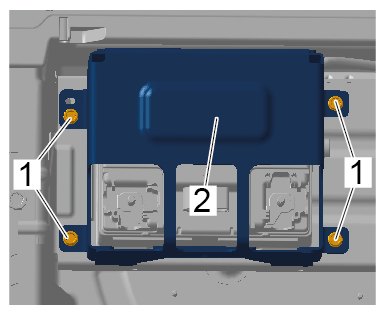

Fastening screws for battery holder	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery cover

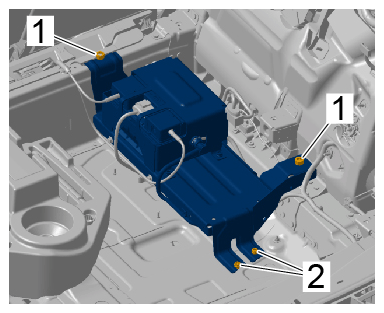

Fastening screw on holder for 48-volt additional battery	Item 1	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screw on holder for 48-volt additional battery	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

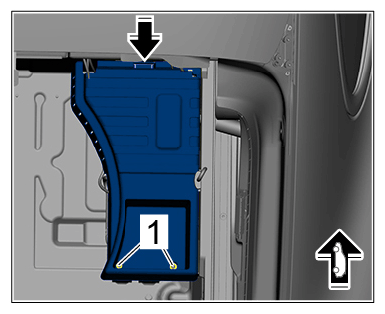

Cover on 48-volt additional battery to body	Item 1	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover on 48-volt additional battery
