Pressure Pipe And Intake Manifold

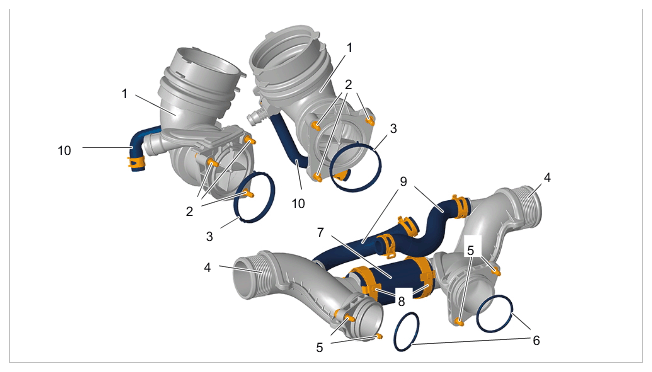

Fig 1: Pressure Pipe And Intake Manifold Component Location With Torque Specification - V8 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe and intake manifold - V8 biturbo

1	Intake manifold > Tightening torque 3.5 Nm (2.5 ftlb.)
2	Screw, M6 x 32 > Tightening torque 9 Nm (6.5 ftlb.)
3	Seal /replace if damaged
4	Pressure pipe
5	Screw, M6 x 23 > Tightening torque 9 Nm (6.5 ftlb.)
6	Seal /replace
7	Connecting hose
8	Screw-type clamp > Tightening torque 5.5 Nm (4 ftlb.)
9	Hose from intake manifold to pressure pipe
10	Active carbon filter
