Cooling-Air Flaps For Charge-Air Cooling

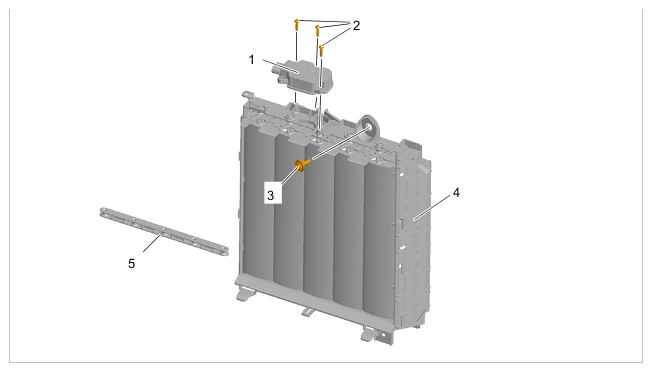

Fig 1: Cooling-Air Flaps For Charge-Air Cooling Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps for charge-air cooling

1	Cooling-air flap motor
2	Screws, TP4 x 16 -Q > Tightening torque 0 Nm
3	Screw, M6 > Tightening torque 4 Nm
4	Cooling-air flaps for charge-air cooling
5	Push rod
