Charge-Air Cooling

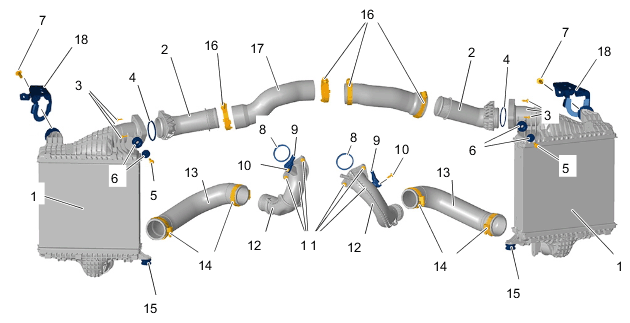

Fig 1: Charge-Air Cooling Component Location With Torque Specification - V8 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge-air cooling - V8 biturbo

1	Charge-air cooler
2	Pressure pipe from turbocharger to charge-air cooler
3	Screw, M6 x 14 > Tightening torque 8 Nm (6 ftlb.)
4	O-ring /replace
5	Screw, M6 x 32 > Tightening torque 4 Nm (3 ftlb.)
6	Mount
7	Screw, M6 x 35 > Tightening torque 8 Nm (6 ftlb.)
8	O-ring /replace
9	Boost pressure sensor /replace O-ring
10	Screw > Tightening torque 5 Nm (3.5 ftlb.)
11	Screw, M6 x 20 > Tightening torque 8 Nm (6 ftlb.)
12	Pressure pipe from charge-air cooler to intake-air distributor
13	Pressure hose from charge-air cooler to intake-air distributor
14	Screw-type clamp > Tightening torque 8 Nm (6 ftlb.)
15	Lower mount
16	Screw-type clamp > Tightening torque 5.5 Nm (4.1 ftlb.)
17	Pressure hose from turbocharger to pressure pipe
18	Charge-air cooler holder
19	Screw, M6 x 25 > Tightening torque 8 Nm (6 ftlb.)
