Starter, Power Supply: Starter

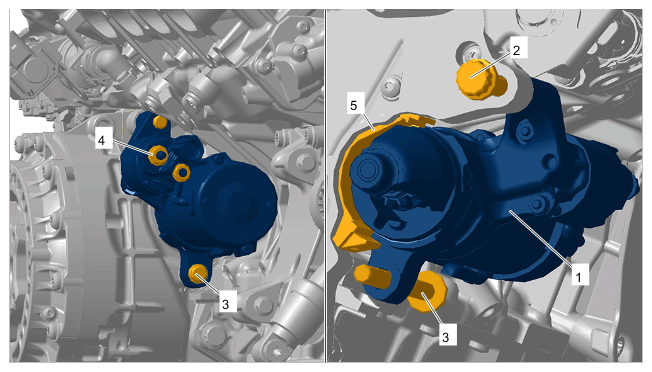

Fig 1: Starter Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Starter

1	Starter
2	Screw, M12 x 100/replace > Initial tightening 30 Nm (22 ftlb.) > Final tightening + 105°
3	Screw, M10 x 50 > Tightening torque 65 Nm (48 ftlb.)
4	M8 nut > Tightening torque 20 Nm (15 ftlb.)
5	Cover section /see Service Information!
