Generator V8

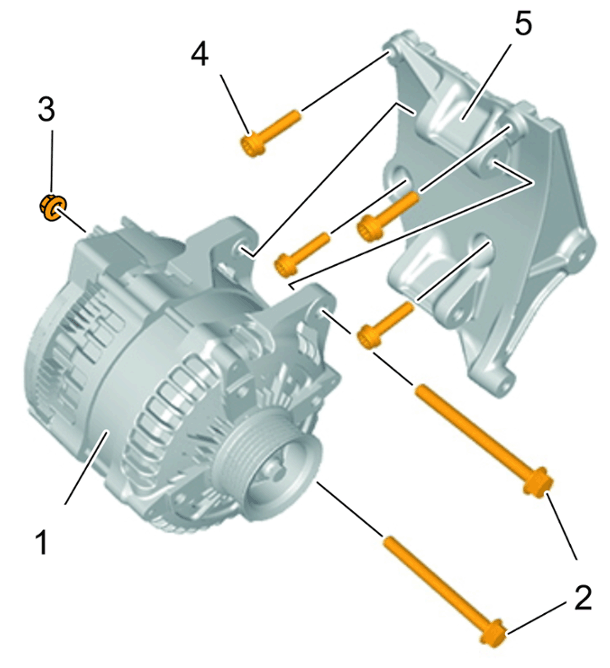

Fig 1: Generator Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Generator

1	Generator
2	Screw M8 x 90 > Tightening torque 20 Nm (14.8 ftlb.)
3	M8 nut > Tightening torque 20 Nm (14.8 ftlb.)
4	Screw M8 x 40 > Tightening torque 23 Nm (17 ftlb.)
5	Support
