Vacuum System

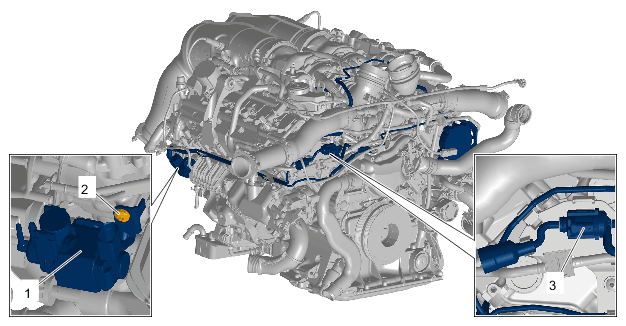

Fig 1: Left Change-Over Valve Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left change-over valve

1	Change-over valve
2	Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
3	Change-over valve

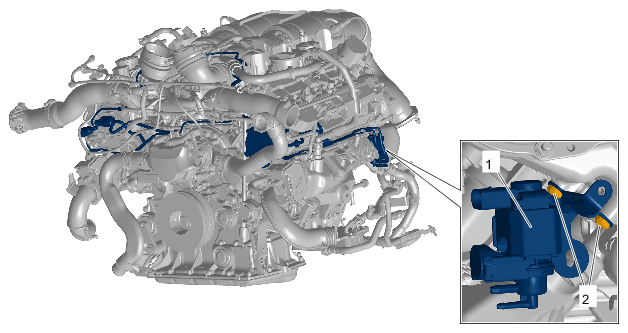

Fig 2: Right Change-Over Valve Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right change-over valve

1	Change-over valve
2	Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
