Intake-Air Distributor

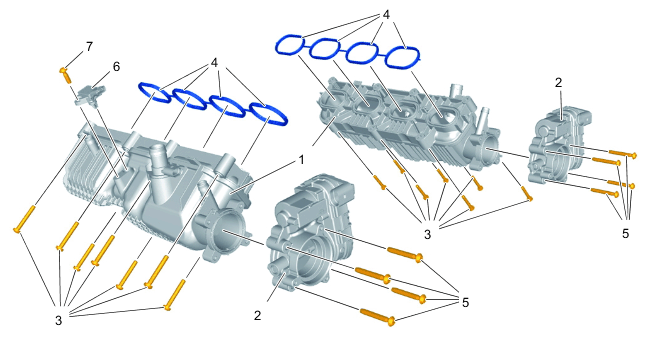

Fig 1: Intake-Air Distributor Component Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake-air distributor - V8 Turbo

1	Intake-air distributor
2	Throttle valve
3	Screws, M6 x 45/Observe tightening sequence > Tightening torque 9 Nm (6.5 ftlb.)
4	Seal/
5	Screw, TP 6 x 45 > Tightening torque 7 Nm (5 ftlb.)
6	Pressure sensor
7	Screw > Tightening torque 9 Nm (6.5 ftlb.)

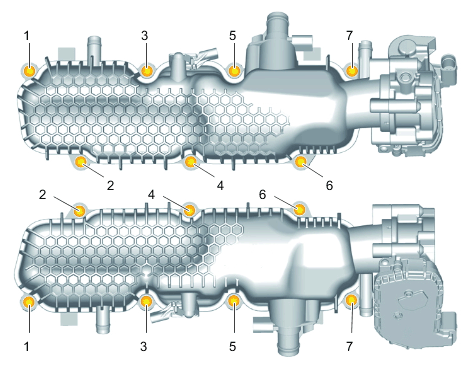

Fig 2: Intake-Air Distributor Screws Tightening Sequence - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for intake-air distributor - V8 Turbo

1-7	Tightening sequence for intake-air distributor
