Inner Heat Shield

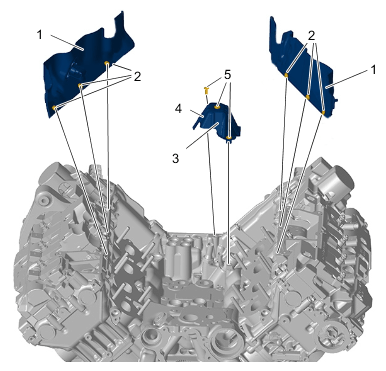

Fig 1: Inner Heat Shield Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner heat shield

1	Heat shield on cylinder head cover, inner
2	Screws > Tightening torque 9 Nm (6.5 ftlb.)
3	Heat shield - front part
4	Heat shield - rear part
5	Screws, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
