Exhaust Manifold

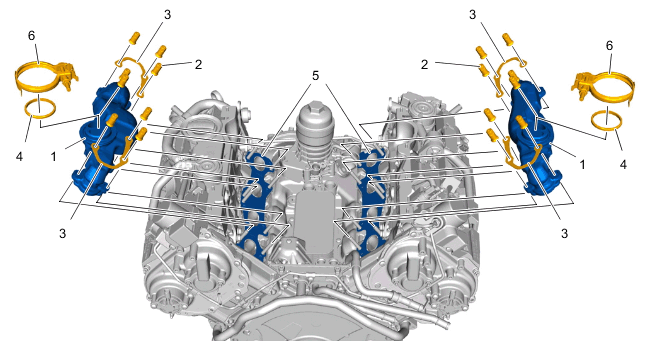

Fig 1: Exhaust Manifold Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold

1	Exhaust manifold
2	M8 nuts > Initial tightening 20 Nm (15 ftlb.) > Final tightening 27 Nm (20 ftlb.)
3	Plate
4	Seal /replace
5	Seal /replace
6	V-band clamp /replace > Tightening torque 25 Nm (19 ftlb.)

Tightening sequence for exhaust manifold

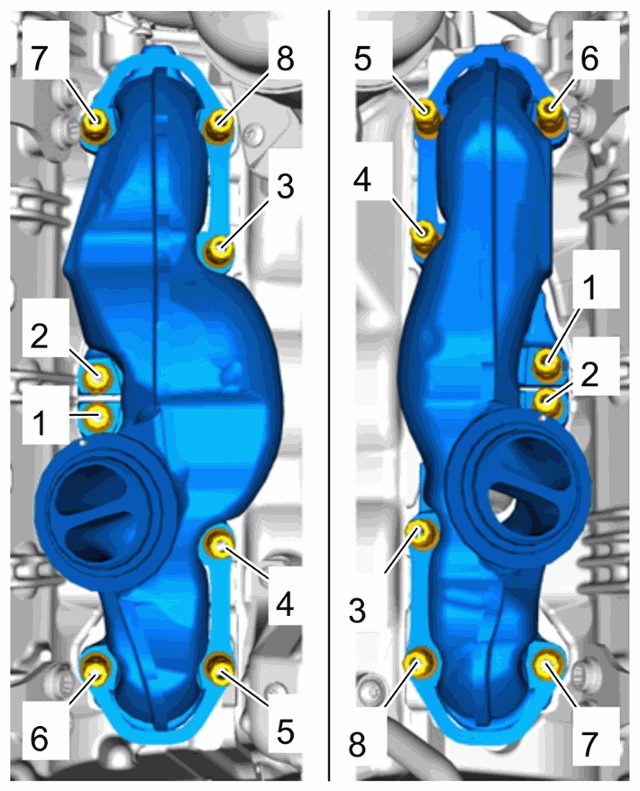

Fig 2: Exhaust Manifold Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for exhaust manifold
