Preliminary Work For Packing 12-Volt Lithium-Ion Battery

  1. Remove the critical battery from the vehicle using > VAS 6883 - Insulated Tool Set

    > 270619 REMOVING AND INSTALLING VEHICLE ELECTRICAL SYSTEM BATTERY

    and place it on a suitable base.

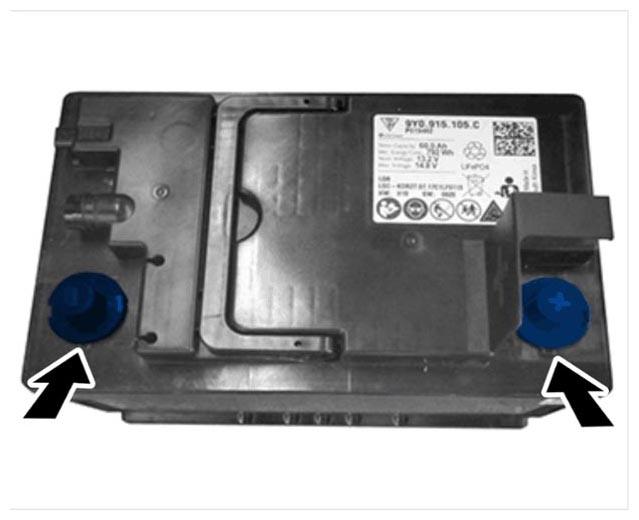

  2. Fit protection caps on battery terminals.
    G15259331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection caps on battery terminals

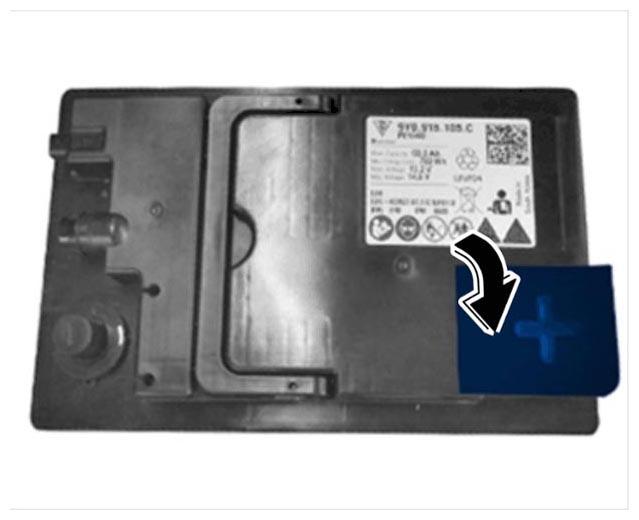

  3. Close the positive terminal cover on the battery.
    G15259332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive terminal cover
