Subsequent Work
WARNING: This page is about a different variant/trim than selected.

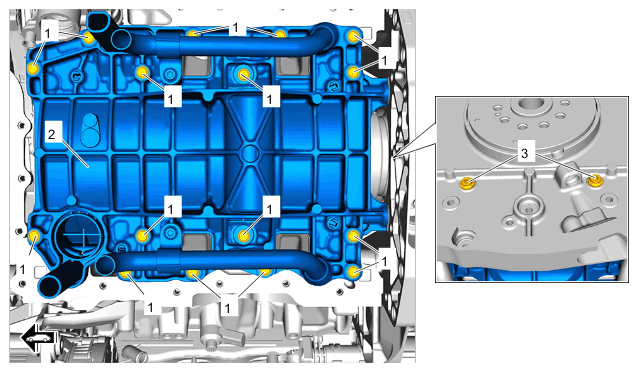

- Install oil windage tray -2-
.
Oil plate
- 1.1 Position oil windage tray -2- on cylinder block.
- 1.2 Replace screws for oil windage tray -1 and 3- .
- 1.3 Fit new
screws securing oil windage tray to cylinder block -1-
and tighten crosswise.
M6 x 18 (3 ea.):
> Initial tightening 3 Nm (2 ftlb.)
> Final tightening + 90°
M6 x 30 (13 ea.):
> Initial tightening 3 Nm (2 ftlb.)
> Final tightening + 90°
- 1.4 Tighten new
screws securing chain housing cover to oil windage tray -3-
.
> Initial tightening 3 Nm (2 ftlb.)
> Final tightening + 90°
- Install oil guide housing.
> Removing and installing oil guide housing (V6 Turbo)
> Removing and installing oil guide housing (V8 biturbo)
- Install cylinder head.
> Removing and installing cylinder head
