Removing Pressure Pipe (At The Turbocharger)

WARNING: This page is about a different variant/trim than selected.
  1. Remove pressure pipe -1-  .
    1. 1.1  Unscrew screws -2-  at the charge-air cooler flange.
    2. 1.2  Unscrew screws -3-  at the turbocharger flange.
    3. 1.3  Unscrew screw securing pressure pipe to engine.
    4. 1.4  Remove pressure pipe -1-  .

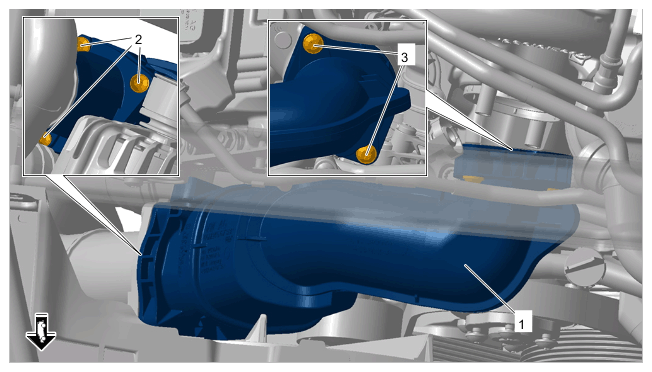

    G15241892Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe (at the turbocharger)
