Install Turbocharger

Information

> Removing and installing recirculating air valve

• If you are replacing the turbocharger, the existing recirculating air valve must be used.

1. Replace oil return line -1-  and holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

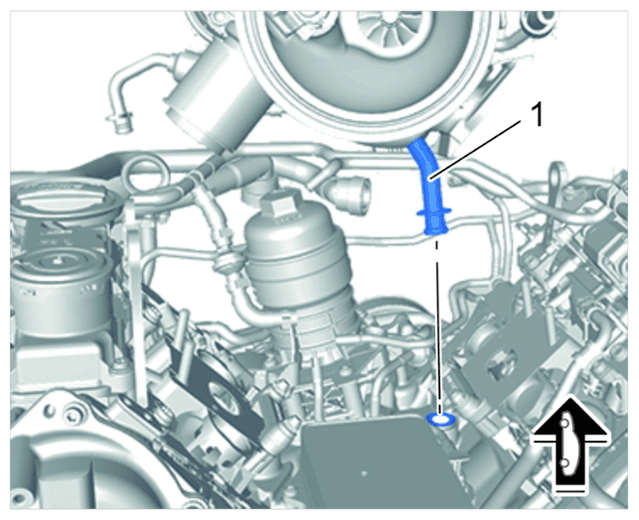

   Exploded view of oil return on turbocharger

2. Install turbocharger.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   View of exhaust pipes

   1. 2.1  Fit new gaskets on the exhaust flange.
   2. 2.2  Position turbocharger and exhaust pipe -2-  and make sure that the oil return line is fitted correctly.
   3. 2.3  Replace V-band clamp on exhaust pipe -4-  including seal and fit and tighten new V-band clamp on exhaust pipe -4-  .

      > Tightening torque 20 Nm (14.8 ftlb.)

   4. 2.4  Replace nuts on exhaust pipes -1-  .
   5. 2.5  Screw on and tighten new nuts on exhaust pipes -1-  .

      >

3. Install catalytic converter.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   V-band clamp on turbocharger

   1. 3.1  Replace seal and V-band clamp -4-  .
   2. 3.2  Position catalytic converter and fit and tighten V-band clamp -4-  .

      > Tightening torque 7 Nm (5 ftlb.)

4. Install coolant pipe.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

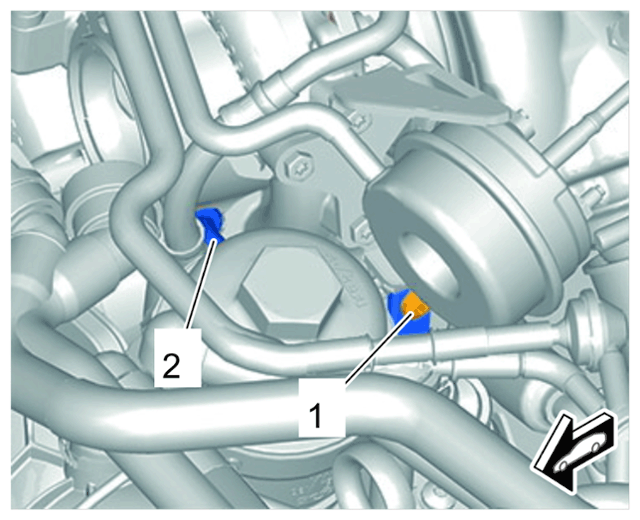

   Vacuum line on turbocharger

   1. 4.1  Replace O-rings on the coolant lines.
   2. 4.2  Insert coolant pipes.
   3. 4.3  Screw in and tighten screws -1-  .

      > Tightening torque 9 Nm (6.6 ftlb.)

5. Install oil supply line -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

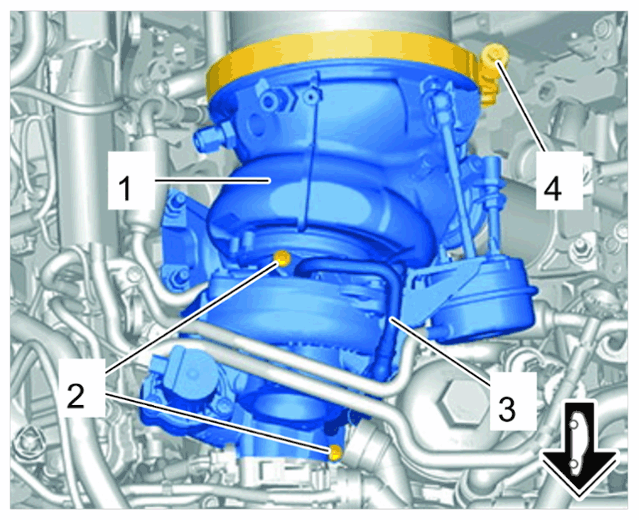

   Turbocharger overview

   1. 5.1  Replace O-ring on oil supply line -3-  .
   2. 5.2  Insert oil supply line -3-  .
   3. 5.3  Fit and tighten screw -2-  on oil supply line.

      > Tightening torque 9 Nm (6.6 ftlb.)

6. Install active carbon filter line -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

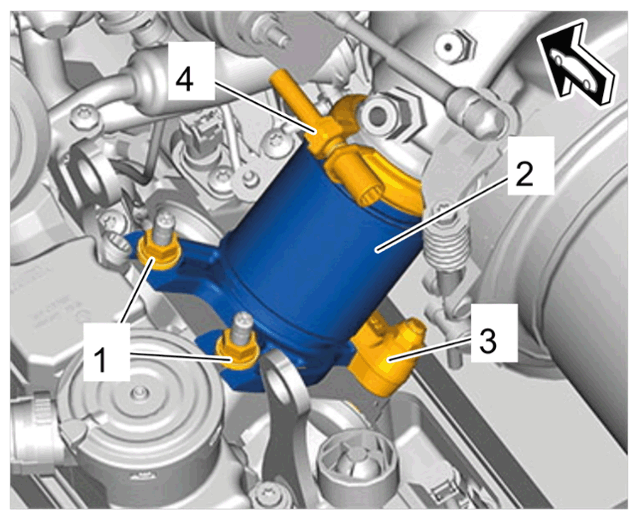

   Turbocharger at the side

   1. 6.1  Replace O-ring.
   2. 6.2  Insert active carbon filter line -2-  .
   3. 6.3  Fit and tighten screw -1-  .

      > Tightening torque 9 Nm (6.6 ftlb.)

7. Connect connections.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

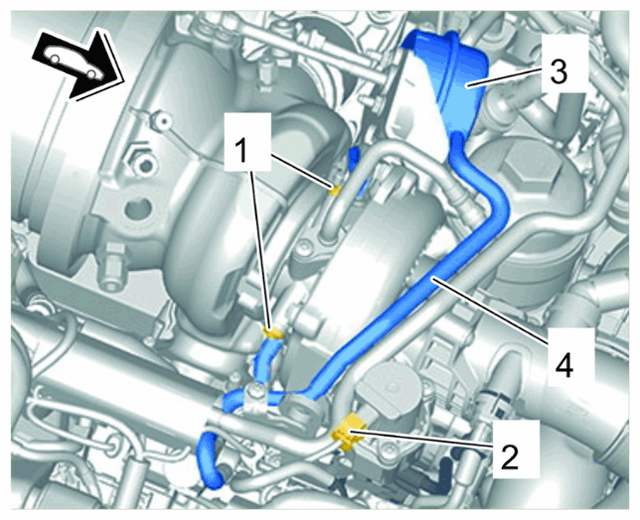

   Turbocharger connections

   1. 7.1  Connect and lock electric plug connection -2-  for recirculating air valve.
   2. 7.2  Connect vacuum hose -4-  to vacuum capsule -3-  .
8. For replacing turbochargers: Tighten plug.

   > Tightening torque 25 Nm (18.4 ftlb.)
