Removing Intake Manifold

WARNING: This page is about a different variant/trim than selected.
  1. Remove suction hose -1-  .

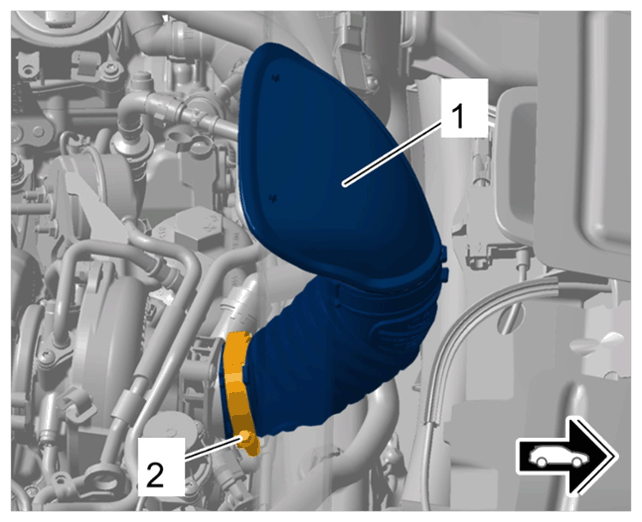

    G15241868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction hose

    1. 1.1  Loosen screw-type clamp -2-  and pull off suction hose -1-  .
  2. Remove intake manifold -1-  .

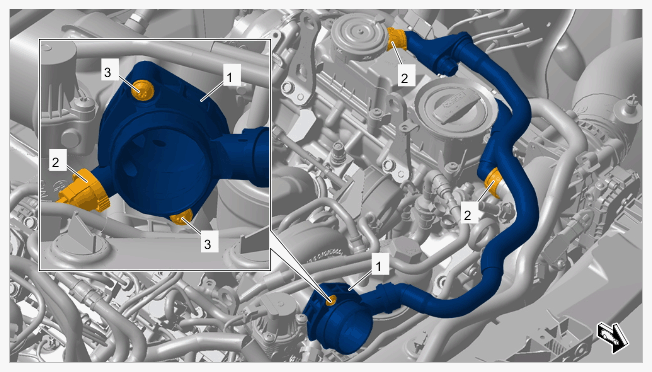

    G15241869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intake manifold

    1. 2.1  Release and disconnect connections -2-  .
    2. 2.2  Unscrew and remove screws -3-  .
    3. 2.3  Remove intake manifold -1-  with positive crankcase ventilation lines.
