Removing Shock Absorber Fork

WARNING: This page is about a different variant/trim than selected.

Slightly raise the wheel bearing housing using lifting equipment (e.g. > VAS 6931 - engine and gearbox jack ). This enables the threaded connections to be disconnected more easily.
Dismantle threaded joints for shock absorber fork

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

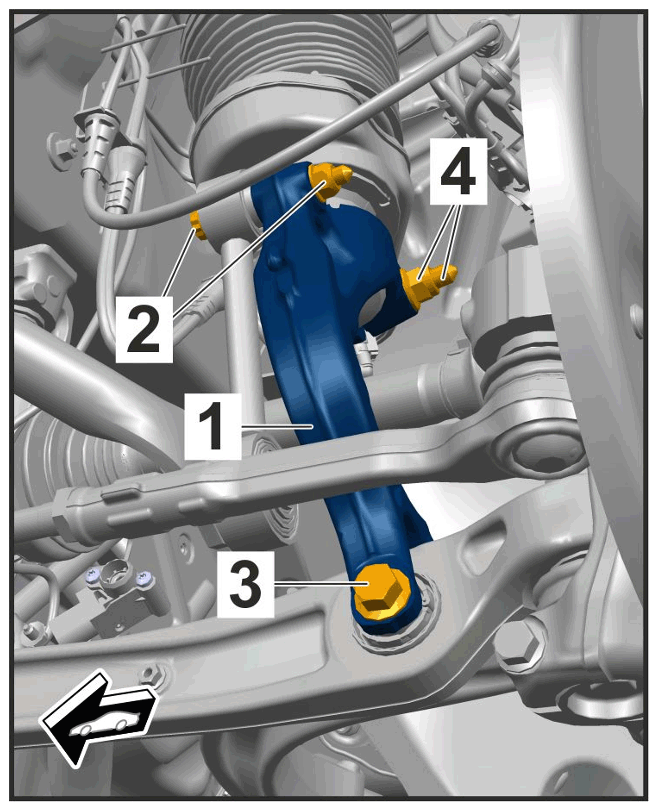

Mounting for shock absorber fork
1. 2.1 Remove threaded joint -2- securing connecting link to shock absorber fork.
2. 2.2 Remove threaded joint -3- securing shock absorber fork to lower trailing arm (turn steering in fully in order to remove screw).
3. 2.3 Remove threaded joint -4- securing shock absorber fork to air-spring strut.
Open up clamped connection for shock absorber fork.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

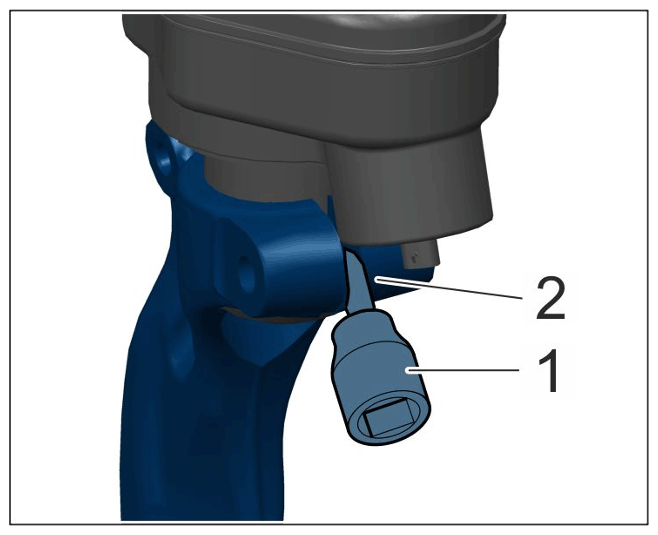

Spreader 3424
1. 3.1 Insert > 3424 - spreader-1- in the slot -2- on the shock absorber fork.
2. 3.2 Turn > 3424 - spreader-1- through 90 degrees.
Remove upper trailing arm -1- from wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

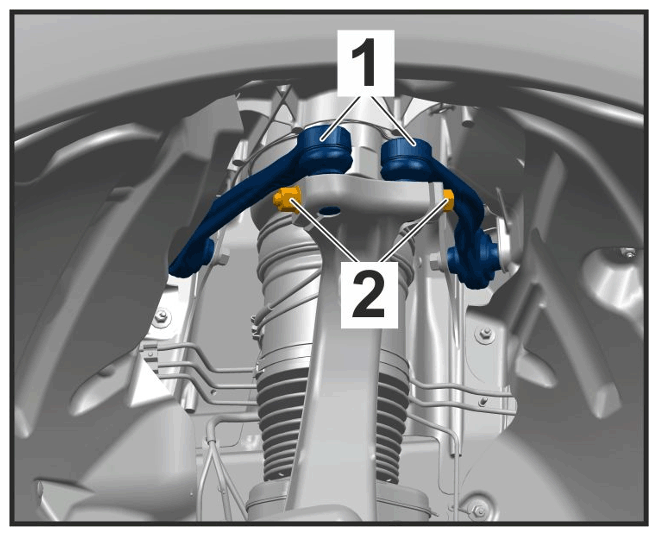

Mounting for upper trailing arm
1. 4.1 Remove threaded joint -2- .
2. 4.2 Pull pins on the trailing arms up and out.
Lower the lifting equipment as far as required until the spring strut fork can be removed by pulling it downwards.
