Removing Brake Booster Vacuum Pump

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
→ Let hot components cool down.

→ Wear personal protective gear.

Remove brake booster vacuum pump -1- .

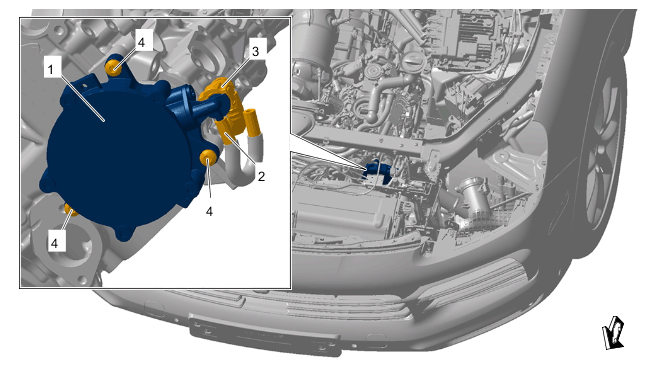

G15289132

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake booster vacuum pump

1.1 Disconnect vacuum hose -2- from brake booster vacuum pump -1- .
1.2 Release and disconnect hose connection -3- .
1.3 Unscrew and remove screws -4- .
1.4 Remove brake booster vacuum pump -1- .
