Installing Guide And Tensioning Rails For Cylinder Bank 1

Information

Check length of timing chains:

• The timing chains have different lengths.
• Bank 1: 122 links
• Bank 2: 124 links

1. Installation is performed in reverse order. Pay particular attention to the following:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

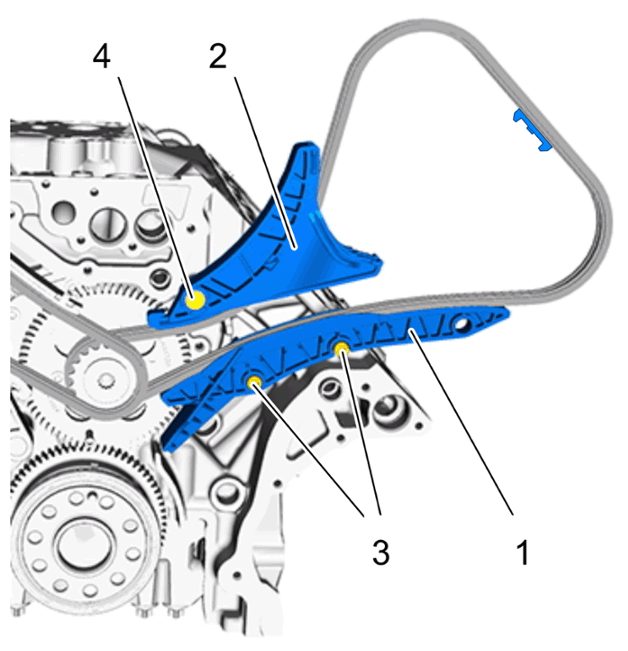

   Guide and tensioning rails for cylinders 1 to 4

   1. 1.1  Fit short timing chain.
